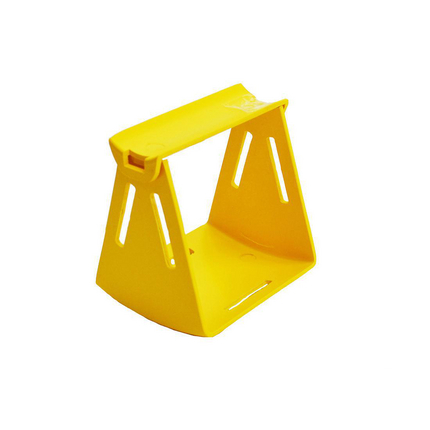

(4)Fiber Raceway Elbow, 4x4, 30 Degree Up, without Lid, Yellow
| Environmental Space: | Indoor |
| Weight: | 0.551 lbs |
| Height: | 4.330 in (109.982 mm |
| Width: | 4.842 in |
| Length: | 4.173 in |
| Material |
|---|
| Fire retardant plastic, Halogen free, UL94-VO rated |
| Item # | Color | Length |
|---|---|---|
| FRCE3YN3U | Yellow | 4.173 in |
| Notes: | The 30-degree up elbow is a 100-mm vertical lead off with an internal lid, so that new optical fibre cords can be installed within the elbow and existing optical fibre cords removed, where necessary. This is usually used where cords may be already installed and either an angular duct feed off or an alignment adjustment is needed. There are two 100-mm outlets which use either: standard joiners or slotless joiners that are available separately. The 30-degree up elbow is a 100-mm vertical lead off with an internal lid, so that new optical fibre cords can be installed within the elbow and existing optical fibre cords removed, where necessary. This is usually used where cords may be already installed and either an angular duct feed off or an alignment adjustment is needed. There are two 100-mm outlets which use either: standard joiners or slotless joiners that are available separately. |
| Update and Revision: | Revision Number: 0.72 Revision Date: 03-28-2024 |
