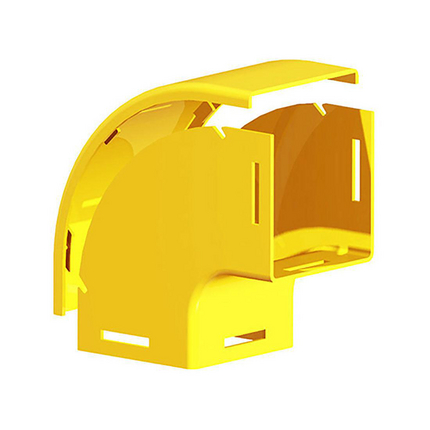

(109)Fiber Raceway Elbow, 4x4, 90 Degree Down, with Lid, Yellow
| Environmental Space: | Indoor |
| Weight: | 0.683 lbs |
| Height: | 6.692 in (169.977 mm |
| Width: | 6.692 in |
| Length: | 4.330 in |
| Material |
|---|
| Fire retardant plastic, Halogen free, UL94-VO rated |
| Item # | Color | Length |
|---|---|---|
| FRCE3YL9D | Yellow | 4.330 in |
| Notes: | The 90-degree down elbow is a 100mm vertical drop off with an external lid, so that optical fibre cords within the elbow can be accessed. This is usually installed where optical fibre cords are to be dropped off below. There are two 100mm outlets, which use either: a standard joiner or a slotless joiner. |
| Update and Revision: | Revision Number: 0.72 Revision Date: 03-28-2024 |
