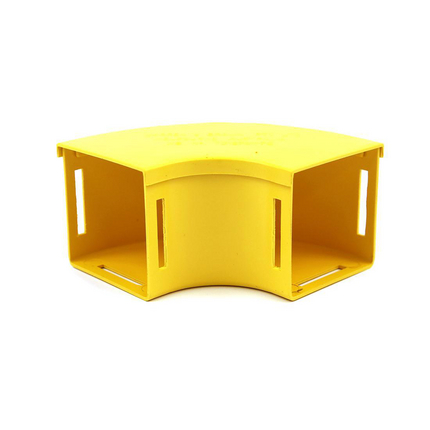

(4)Fiber Raceway Elbow, 2x2, 90 Degree Horizontal, with Lid, Yellow
| Environmental Space: | Indoor |
| Weight: | 0.077 lbs |
| Height: | 2.204 in (55.982 mm |
| Width: | 3.582 in |
| Length: | 3.582 in |
| Material |
|---|
| Fire retardant plastic, Halogen free, UL94-VO rated |
| Item # | Color | Length |
|---|---|---|
| FRCE1YL9H | Yellow | 3.582 in |
| Notes: | The 50mm elbow assembly is used to provide a horizontal, right angled bend (right or left hand) with standard 50mm straight ducting. It requires a standard joiner at each interface, which provides a smooth & strong joint. |
| Update and Revision: | Revision Number: 0.135 Revision Date: 03-28-2024 |
