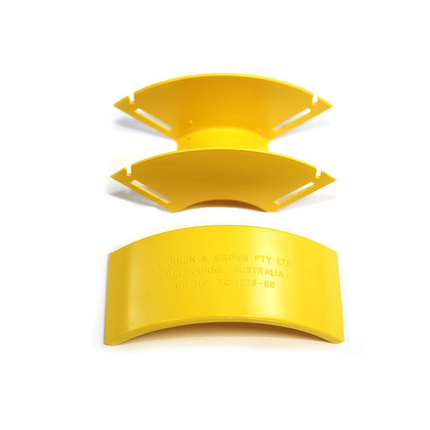

(4)Fiber Raceway Elbow, 2x2, 90 Degree Down, with Lid, Yellow
| Environmental Space: | Indoor |
| Weight: | 0.088 lbs |
| Height: | 3.543 in (89.992 mm |
| Width: | 3.543 in |
| Length: | 2.165 in |
| Material |
|---|
| Flame Retardant Plastic, Halogen free, UL-94-VO rated |
| Item # | Color | Length |
|---|---|---|
| FRCE1YL9D | Yellow | 2.165 in |
| Notes: | This 90-degree down elbow is a 50-mm angled lead off with an external lid, so that new optical fibre cords can be installed within the elbow and existing optical fibre cords removed, where necessary. It is usually used where optical fibre cords are to be dropped off below. There are two 50-mm outlets, which use standard joiners; available separately. |
| Update and Revision: | Revision Number: 0.72 Revision Date: 03-28-2024 |
