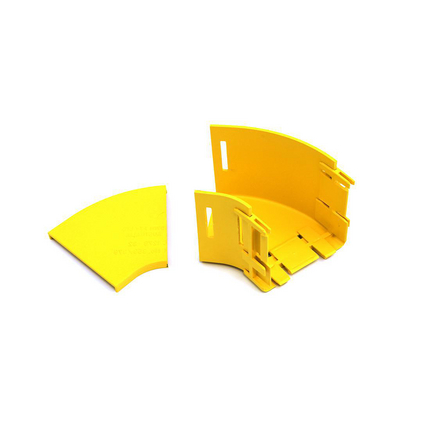

(4)Fiber Raceway Elbow, 2x2, 45 Degree Horizontal, with Lid, Yellow
| Environmental Space: | Indoor |
| Weight: | 0.055 lbs |
| Height: | 2.165 in (54.991 mm |
| Width: | 2.637 in |
| Length: | 2.440 in |
| Material |
|---|
| Fire retardant plastic, Halogen free, UL94-VO rated |
| Item # | Color | Length |
|---|---|---|
| FRCE1YL4H | Yellow | 2.440 in |
| Notes: | This elbow provides a method of diverting the 50mm-duct system around objects. It can be used with a tee to feed a duct at a 45-degree angle to the main system. The elbow can also be used in pairs to align ducts and other components with an offset. The elbow is connected to the 50mm duct using a standard joiner, which is available separately. |
| Update and Revision: | Revision Number: 0.72 Revision Date: 03-28-2024 |
