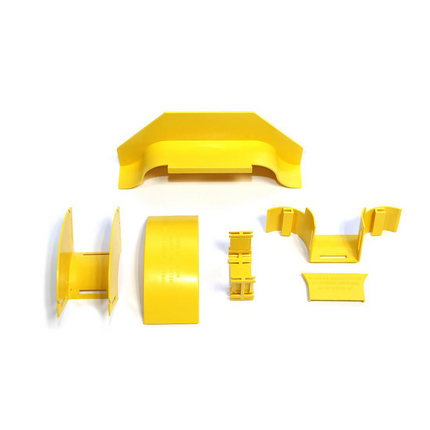

(4)Fiber Raceway Drop Off Kit 50mm for 100mm; 220mm & 300mm
| Environmental Space: | Indoor |
| Weight: | 0.308 lbs |
| Height: | 4.330 in (109.982 mm |
| Width: | 9.055 in |
| Length: | 2.362 in |
| Material |
|---|
| Fire retardant plastic, Halogen free, UL94-VO rated |
| Item # | Color | Length |
|---|---|---|
| FRCDUYL3SK | Yellow | 2.362 in |
| Notes: | The break out kit is used to provide a safe exit for optical fibre cords at any point in 300, 220 & 100mm ducting, to 50mm duct, feeding in a vertical plane. It clips straight into a cut out provided by the cut out tool, or cut out jig, and provides a 90° down elbow, over which a 50mm slotted duct or straight duct can be fitted, using a 50mm standard joiner.These items are available separately. A ramp off is also provided to maintain fibre bending radii, up to the break out. |
| Update and Revision: | Revision Number: 0.72 Revision Date: 03-28-2024 |
