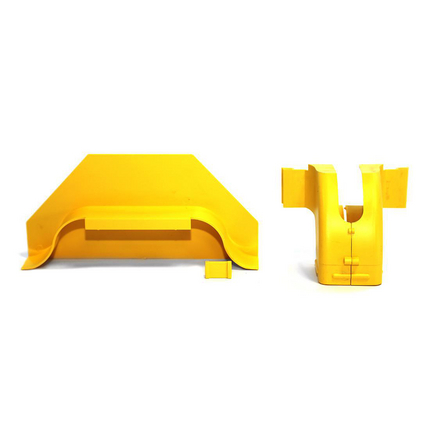

(4)Fiber Raceway Drop Off Kit Square Tube 50mm for 100mm; 220mm Duct & 300mm
| Environmental Space: | Indoor |
| Weight: | 0.264 lbs |
| Height: | 4.133 in (104.978 mm |
| Width: | 8.464 in |
| Length: | 3.740 in |
| Material |
|---|
| Fire retardant plastic, Halogen free, UL94-VO rated |
| Item # | Color | Length |
|---|---|---|
| FRCDUYL2SK | Yellow | 3.740 in |
| Notes: | The drop off assembly is used to provide a safe exit for optical fibre cords, at any point, in either: 300, 220 or 100mm ducting. It fits into a cut - out provided by the cut - out tool; and is used in conjunction with RAMP-OFF, which also clips into the same cut - out. It provides a square opening, over which a 50mm square flexible conduit can be fitted. |
| Update and Revision: | Revision Number: 0.72 Revision Date: 03-28-2024 |
