(4)Fiber Raceway Drop Off Tube 50mm for 100mm; 220mm Duct & 300mm
| Environmental Space: | Indoor |
| Weight: | 0.264 lbs |
| Height: | 3.937 in (100.000 mm |
| Width: | 8.267 in |
| Length: | 3.149 in |
| Material |
|---|
| Fire retardant plastic, Halogen free, UL94-VO rated |
| Item # | Color | Length |
|---|---|---|
| FRCDUYL1SK | Yellow | 3.149 in |

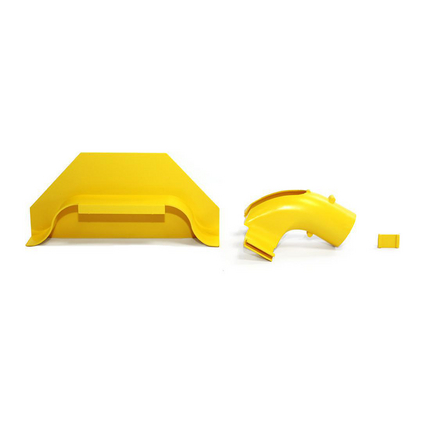

| Notes: | The drop off kit is used to provide a safe exit for fibre cords to equipment below or above 300, 220, 100 & 50mm ducting. It fits into a cut out provided by the cut out tool and includes: A spreader to lock the drop off connector, and a RAMP OFF, The ramp off also clips into the same cut out (when fitting to 300, 220 & 100mm ducting). It provides a tubular exit point over which a Ø44mm ID/ Ø50 mm OD flexible (or split) convoluted tube can be fitted. Also convoluted tubing adaptor kit can be used. |
| Update and Revision: | Revision Number: 0.72 Revision Date: 03-28-2024 |
