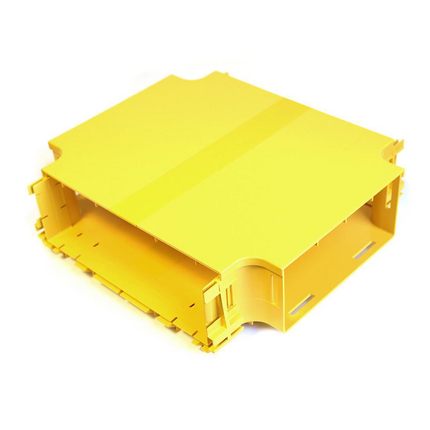

(4)Fiber Raceway Cross Connector, 12x8 (300mm x 220mm), With Lid
| Environmental Space: | Indoor |
| Weight: | 2.888 lbs |
| Height: | 4.448 in (112.979 mm |
| Width: | 17.519 in |
| Length: | 12.677 in |
| Material |
|---|
| Fire retardant plastic, Halogen free, UL94-VO rated |
| Item # | Color | Length |
|---|---|---|
| FRCC12X4YL4 | Yellow | 12.677 in |
| Notes: | This cross connector is used to establish a right, angled intersection between 300mm x 100mm and 220mm x 100mm duct. i.e. 2 arms of the connector are connected to both 300mm and 220mm duct, or other components. Included are 2 x 220 mm x 100mm slotless duct joiners. Joiners for 300mm x 100mm duct; either: standard joiners or slotless joiners; are available separately. NOTE: Care should be taken not to lay more than 50mm depth of pigtails or patch cords in troughing, particularly where they cross each other at right angles. This may occur with this connector. |
| Update and Revision: | Revision Number: 0.72 Revision Date: 03-28-2024 |
