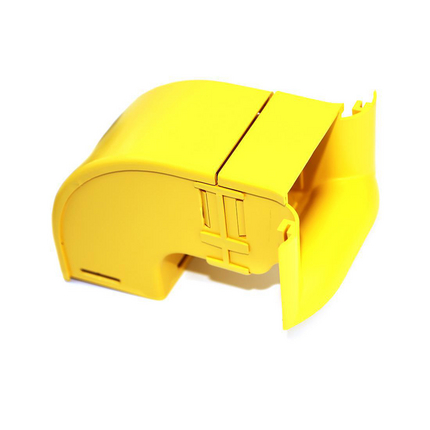

(4)Fiber Raceway Break-Out Kit, 4x4 With Lid, 90 Degree Bend Down
| Environmental Space: | Indoor |
| Weight: | 0.943 lbs |
| Height: | 6.692 in (169.977 mm |
| Width: | 10.236 in |
| Length: | 8.070 in |
| Material |
|---|
| Fire retardant plastic, Halogen free, UL94 VO rated |
| Item # | Color | Length |
|---|---|---|
| FRCB3YL9DK | Yellow | 8.070 in |
| Notes: | The 90-degree down elbow kit is a 100mm vertical drop off with an external lid, fitted with an outlet guide, using a standard 100mm duct joiner. This outlet guide (eg. an outlet trumpet) enables optical fibre cords to be dropped-off to a lower duct, at a controlled radius of 30mm. It has removable lids that allow quick and easy installation of optical fibre cords within the elbow. This is usually installed where optical fibre cords are to be dropped off below. There is one 100mm outlet to connect to other duct items, using either: a standard joiner or a slotless joiner; that are available separately. |
| Update and Revision: | Revision Number: 0.72 Revision Date: 03-28-2024 |
