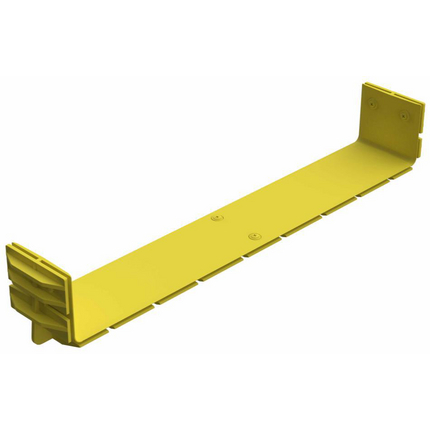

(4)Fiber Raceway Slotless Joiner, 4x24 (100mm x 600mm), Standard, Yellow
| Environmental Space: | Indoor |
| Weight: | 1.852 lbs |
| Overall Height: | 4.094 in |
| Overall Width: | 3.937 in |
| Overall Length: | 25.354 in |
| Material |
|---|
| Fire retardant plastic, Halogen free, UL94-VO rated |
| Notes: | This joiner is used to link standard 600mm straight ducting with any duct components. It provides a smooth & strong joint. Typical other components are; horizontal elbows and 600mm to 300mm reducers etc.; which require a joiner at each interface. The joiner is first fitted to the square ends of adjacent 600mm duct (or components) and 6 x Ø8mm holes are drilled through both duct sides and ends, matching the holes in the joiner. Then a small Ø8mm screw rivet (supplied) is inserted in each hole. The end of the screw rivet expands to make a mechanically strong and permanent joint. |
| Update and Revision: | Revision Number: 0.2 Revision Date: 11-05-2025 |
