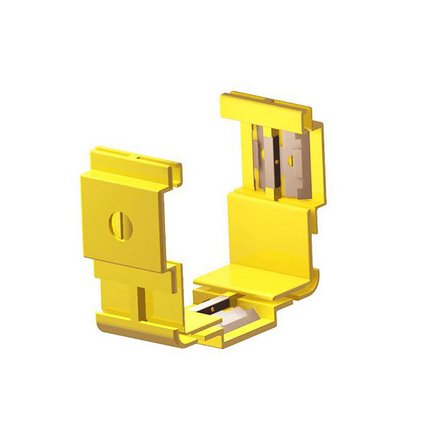

(4)Fiber Raceway Slotless Joiner, 4x4 (100mm x 100mm), Standard, Yellow
| Environmental Space: | Indoor |
| Weight: | 0.176 lbs |
| Height: | 3.937 in (100.000 mm |
| Width: | 1.969 in |
| Length: | 3.937 in |
| Material |
|---|
| Fire retardant plastic, Halogen free, UL94-VO rated |
| Item # | Color | Length |
|---|---|---|
| FRAS3Y | Yellow | 3.937 in |
| Notes: | The slotless joiner is used to link standard 100mm straight ducting with itself or any of the other 100mm components; with which it provides a smooth & strong joint. Typical other fittings are: horizontal or vertical elbows, cross connectors, tees, etc.; which require a joiner at each interface. The slotless joiner incorporates three metal spring brackets, which securely grip with the flat face of the mating 100mm duct components. This ensures that a positive, permanent connection is achieved. The slotless joiner is easily and simply locked or released by turning the locking slot through 90 degrees; using either a coin or wide bladed screwdriver. |
| Update and Revision: | Revision Number: 0.93 Revision Date: 03-28-2024 |
