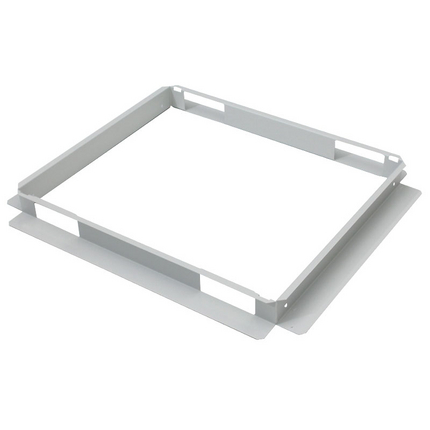

(4)Bottom fixing frame for fan unit Free Standing E-Series.
| Suitable Applications: | frame for fixing standard fan unit in bottoms of EMEA free standing cabinets with fan knock-outs. |
| Environmental Space: | Indoor |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Packaging: | Individually packaged in a box. |
| Item # | Application | Colour |
|---|---|---|
| EDAF4012 | E-Series Cabinets | Black |
| EDAF4011 | E-Series Cabinets | Gray |
| Update and Revision: | Revision Number: 0.46 Revision Date: 04-08-2022 |
