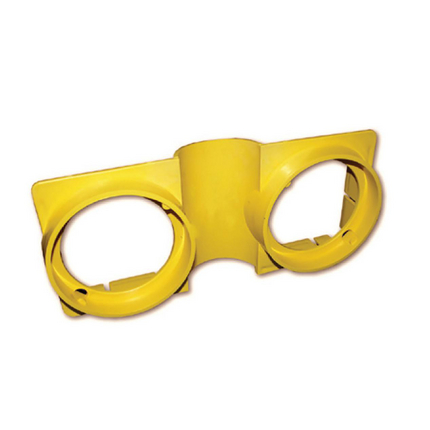

(4)Fiber Raceway End Cap, 4x8, with 2x88mm Tube Outlet, Yellow
| Environmental Space: | Indoor |
| Weight: | 0.26 lbs |
| Height: | 1.692 in (42.977 mm |
| Width: | 9.251 in |
| Length: | 4.055 in |
| Material |
|---|
| Fire retardant plastic, Halogen free, UL94-VO rated |
| Item # | Color | Length |
|---|---|---|
| FRAE4Y2 | Yellow | 4.055 in |
| Notes: | The duct end cover is provided with two large size dia holes and connection, that allows fitting of two large size convoluted, flexible tubes. The tubes are 75mm ID/88mm OD. The convoluted tube allows optical fibre cords to be dropped off from the 220mm X 100mm duct to lower transmission equipment. The end cover snaps simply into the duct slots of a 90 degree, down elbow and can be removed with a screwdriver should the system need extending. |
| Update and Revision: | Revision Number: 0.72 Revision Date: 03-28-2024 |
