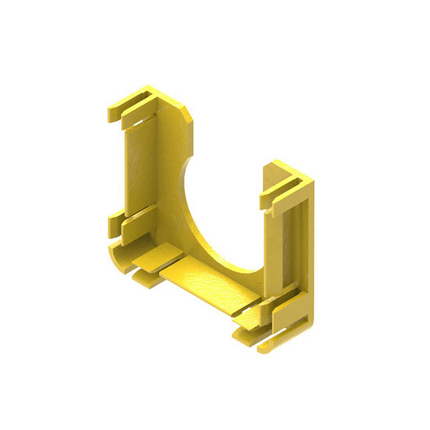

(4)Fiber Raceway End Cap, 2x2, with 38mm Slot, Yellow
| Environmental Space: | Indoor |
| Weight: | 0.055 lbs |
| Height: | 1.850 in (46.990 mm |
| Width: | 0.551 in |
| Length: | 2.362 in |
| Material |
|---|
| Fire retardant plastic, Halogen free, UL94-VO rated |
| Item # | Color | Length |
|---|---|---|
| FRAE1YC | Yellow | 2.362 in |
| Notes: | The duct end cover is provided with a 38mm dia cut out, that allows fitting of a convoluted, flexible tube 32mm ID/38mm OD. This convoluted tube allows optical fibre cords to be dropped off from the duct to lower transmission equipment. The end cover is also used for sealing the open end of a standard 50mm straight duct. It snaps simply into the duct slots and can be removed with a screwdriver should the system need Extending. |
| Update and Revision: | Revision Number: 0.135 Revision Date: 03-28-2024 |
