FRAA5YSK - Fiber Raceway ADC Adapter, Belden 4x12 to ADC 12"


Fiber Raceway ADC Adapter Kit, Belden 4x12 (300mm x 100mm) to ADC 12"

Product Overview

Environmental Space: Indoor

Construction

Weight: 0.238 lbs
Height: 1.377 in (34.976 mm
Width: 2.362 in
Length: 2.755 in

Product Material

Materials
Material
Mild steel, Nickel Plated finish

Related Part Numbers

Variants
Item #ColorLength
FRAA5YSKYellow2.755 in

Product Notes

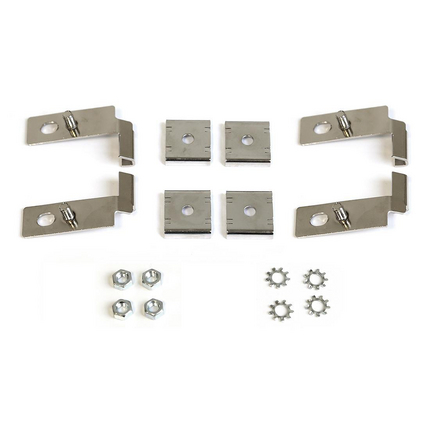

Notes: The duct adapter kit is used to join existing 12 x 4" ADC plastic duct to 300 x 100mm Yellow Duct ducting, etc. The kit consists of 4 adapters c/w with: locking tabs and 6mm dia studs; clamping bracket; nuts and lock washers. An adaptor unit is positioned into the moulded lugs on the ADC duct, with the clamping bracket placed on the stud, to the outside of ADC duct. The adaptors locking tabs are positioned into slots made in the end and sides of the Yellow Duct, using slotting tool available separately. A nut and washer are installed to secure the four brackets and ducts together.

History

Update and Revision: Revision Number: 0.72 Revision Date: 03-28-2024
