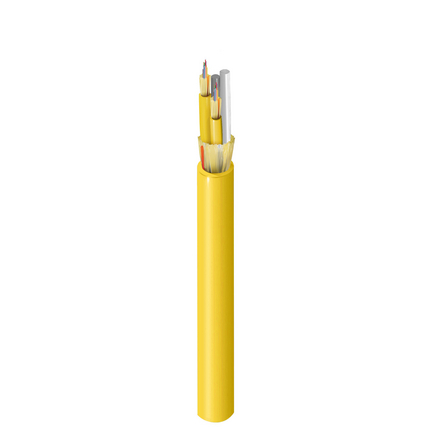

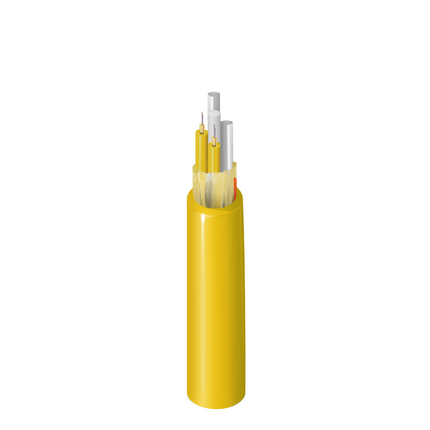

FISM024P1 - Indoor OFNP OS2 Mini-Distribution 24 Fibers


FX Indoor OS2 Mini Distribution 24 Fibers OFNP Subunits (2.0mm) Yellow Jacket

Part Number: FISM024P1
Construction Type: Mini Distribution

Product Overview

Environmental Space: Indoor
Suitable Applications: Indoor

Construction

Fiber Cable Construction
Fiber TypeFiber Count
OS224
Central Strength Member: GRP
Bulk Cable Weight: 25.6 lbs/1000ft

SubUnit Specifications

Number of Active Subunits: 2
Number of Subunit Positions: 4
Fibers Per Subunit: 12
SubUnit Diameter: 0.078 in (2.0 mm)

Jacket Specifications

Number of Jackets: Single Jacket
Material: PVC
Outer Jacket Material
MaterialNominal Diameter
Thermoplastic0.26 in (6.6 mm)
Color: Yellow
Number of Ripcords: 2
Nominal Diameter: 0.251 (6.4)

Optical Characteristics

Mode Field Diameter: 9.2
Fiber Core Diameter: 8.2/125μm
Max Attenuation at 1310 nm: 0.4 dB/km
Max Attenuation at 1550 nm: 0.3 dB/km
Wavelength: 1310 nm / 1550 nm
10 Gigabit Ethernet Performance: 10,000 m / 40,000 m
1 Gigabit Ethernet Performance: 5,000 m / -

Mechanical Characteristics

Mechanical Tests
DescriptionRequirement/Value
Cable Min. Bend Radius Installation (Short Term)20x Cable OD
Cable Min. Bend Radius Operation (Long Term)15x Cable OD
Cable Max. Tensile Strength Installation (Short Term)34 N (150 lbf)
Cable Max. Tensile Strength Operation (Long Term)10 N (45 lbf)

Temperature Range

Operating Temp Range: 0C to +70C
Installation Temp Range: 0C to +60C
Storage Temp Range: -40C to +70C

Standards

UL Rating/Flame Test: OFNP
NEC/(UL) Compliance: N/A
C (UL) US: FT6
TIA/EIA Compliance: ANSI/ICEA S-83-596
RoHS: Yes

History

Variants
Item #ColorUPC
FISM024P1Yellow611589541855
Update and Revision: Revision Number: 0.58 Revision Date: 01-16-2020
