FISM024A2 - Indoor Plenum OS2 Mini-Distribution 24F AIA Yellow

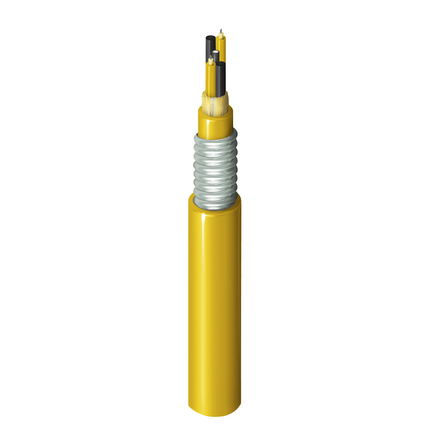

Indoor Singlemode OS2 Mini-Distribution 24F OFCP Aluminum Interlocked Armor Yellow Jacket Fiber Cable

Part Number: FISM024A2
Construction Type: Mini Distribution

Product Overview

Environmental Space: Indoor
Suitable Applications: Indoor

Construction

Fiber Cable Construction
Fiber TypeFiber Count
OS224
Central Strength Member: GRP

SubUnit Specifications

Number of Active Subunits: 2
Number of Subunit Positions: 3
Fibers Per Subunit: 12
SubUnit Diameter: 0.118 in (3.0 mm)

Jacket Specifications

Number of Jackets: Double Jacket
Type of Armor: Interlocked Aluminum
Number of Inner Jacket Ripcords: 2
Color@InnerJacket1: Yellow
Material@InnerJacket1: PVC
Outer Jacket Material
MaterialNominal Diameter
Thermoplastic0.74 in (18.8 mm)
Outer Jacket Color: Yellow
Number of Outer Jacket Ripcords: 2
OuterJacket1, Nominal Diameter: 0.738 (18.7)

Optical Characteristics

Mode Field Diameter: 9.2
Fiber Core Diameter: 8.2/125μm
Max Attenuation at 1310 nm: 0.4 dB/km
Max Attenuation at 1550 nm: 0.3 dB/km
Wavelength: 1310 nm / 1550 nm
10 Gigabit Ethernet Performance: 10,000 m / 40,000 m
1 Gigabit Ethernet Performance: 5,000 m / -

Mechanical Characteristics

Mechanical Tests
DescriptionRequirement/Value
Cable Min. Bend Radius Installation (Short Term)20x Cable OD
Cable Min. Bend Radius Operation (Long Term)15x Cable OD

Temperature Range

Operating Temp Range: 0C to +70C
Installation Temp Range: 0C to +60C
Storage Temp Range: -40C to +70C

Standards

UL Rating/Flame Test: OFCP
NEC/(UL) Specification: N/A
C (UL) US: FT4
Telecommunications Standards: ANSI/ICEA S-83-596
RoHS: Yes

History

Variants
Item #Color
FISM024A2Yellow
Update and Revision: Revision Number: 0.54 Revision Date: 03-13-2019
