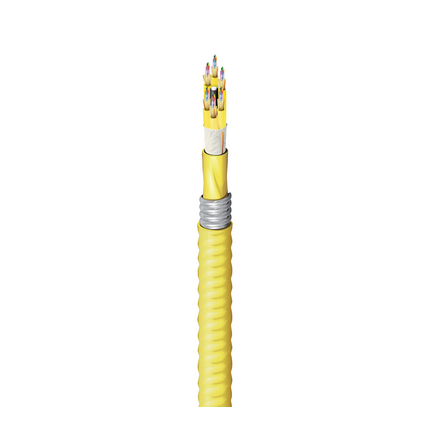

FISD072FK - Indoor Riser OS2 Distribution 72 F Aluminum Interlocked


FX Indoor OS2 Distribution Tight Buffer 72 Fibers OFCR Aluminum Interlocked Armor Sub-Units(12F) Yellow Jacket

Product Overview

Filter.Product Category: Fiber Distribution Cable
Suitable Applications: Premise Backbone

Fiber Specifications

Fibre Type@Fiber1: OS2
Fiber Core Diameter: 8.2/125 µm
Fibre Buffer - Material@Fiber1: PVC - Polyvinyl Chloride
Fibre Buffer - Diameter@Fiber1: 900 µm
Fibre Count@Fiber1: 72
Fiber Color Coding: TIA-598-D

Cable Construction

Number of Active Subunits: 6
Fibers Per Subunit: 12
SubUnit Diameter: 0.230 in (5.8 mm)
SubUnit Color@Fiber1: Yellow
SubUnit Strength members@Fiber1: Aramid yarns
Central Strength Member: Upjacketed GRP

Inner Jacket Specifications

Material@InnerJacket1: PVC - Polyvinyl Chloride
Nominal Diameter@InnerJacket1: 0.799 in
Color@InnerJacket1: Yellow
Number of Inner Jacket Ripcords: 1

Armor Specifications

Armor, Type of Armor: Interlocked
Armor, Material: Aluminum

Outer Jacket Specifications

Material@OuterJacket1 1: PVC - Polyvinyl Chloride
OuterJacket1, Nominal Diameter: 1.196 in (30.4 mm)
Outer Jacket Color: Yellow
Optical Characteristics
Wavelength1310 nm1550 nm
Max. Attenuation0.50.5
Mode Field Diameter9.210.4
1 Gigabit Ethernet Performance5,000 m--
10 Gigabit Ethernet Performance10,000 m50,000 m

Mechanical Characteristics

Min Bend Radius During Installation: 20x Cable OD
Min Bend Radius During Operation: 10x Cable OD
Max Tensile Strength During Installation: 1320 N (300 lbf)
Max Tensile Strength During Operation: 400 N (90 lbf)
Crush Resistance: 440 N/cm
Bulk Cable Weight: 461 lbs/kft (687 kg/km)

Temperature Range

Installation Temp Range: -10°C to +60°C
Operating Temp Range: -20C to +70C
Storage Temp Range: -40C to +70C

Standards and Compliance

Environmental Suitability (CV): Indoor
Sustainability (CV): Product Lens(TM)=Yes, CA Prop 65 (CJ for Wire and Cable)=Yes
ICEA Compliance: S-83-596

History

Update and Revision: Revision Number: 0.74 Revision Date: 05-22-2020
