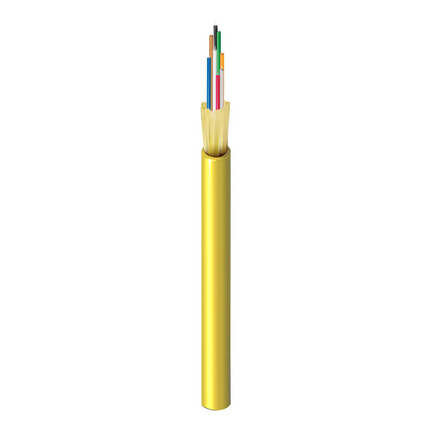

FISD008P9 - Indoor Plenum OS2 Distribution Tight Buffer 8 Fibers


FX Indoor OS2 Distribution Tight Buffer 8 Fibers OFNP Non-Unitized Yellow Jacket

Part Number: FISD008P9
Construction Type: Distribution

Product Overview

Print Legend: BELDEN 8XOS2 INDOOR DISTRIBUTION CABLE FISD008P9 E95466(-PLANT ID) (UL) TYPE OFNP C(UL) OFNP --- FT6 --- ROHS (LOT NUMBER) (MMYYYY DATE CODE) (SEQUENTIAL MATERIAL)
Environmental Space: Indoor
Suitable Applications: Indoor

Construction

Fiber Cable Construction
Fiber TypeFiber Count
OS28
Fiber Color Coding: Blue, Orange, Green, Brown, Gray, White, Red, Black
Buffer Specification
Buffer MaterialBuffer Diameter
Thermoplastic900 μm

SubUnit Specifications

Fibers Per Subunit: 8

Jacket Specifications

Number of Jackets: Single Jacket
Outer Jacket Material
MaterialNominal Diameter
PVC0.22 in (5.6 mm)
Outer Jacket Color: Yellow
Number of Outer Jacket Ripcords: 1

Optical Characteristics

Mode Field Diameter: 9.2
Fiber Core Diameter: 8.2/125μm
Max Attenuation at 1310 nm: 0.5 dB/km
Max Attenuation at 1550 nm: 0.5 dB/km
Wavelength: 1310 nm / 1550 nm
10 Gigabit Ethernet Performance: 10,000 m / 40,000 m
1 Gigabit Ethernet Performance: 5,000 m / -

Mechanical Characteristics

Mechanical Tests
DescriptionRequirement/Value
Cable Min. Bend Radius Installation (Short Term)20x Cable OD
Cable Min. Bend Radius Operation (Long Term)10x Cable OD
Cable Max. Tensile Strength Installation (Short Term)34 N (150 lbf)
Cable Max. Tensile Strength Operation (Long Term)17 N (75 lbf)

Temperature Range

Operating Temp Range: 0C to +70C
Installation Temp Range: 0C to +60C
Storage Temp Range: -40C to +70C

Standards

UL Rating/Flame Test: Plenum
CEC/C(UL) Specification: OFNP
Telecommunications Standards: ANSI/ICEA S-83-596
RoHS: Yes

History

Variants
Item #ColorUPC
FISD008P9Yellow612825372257
Update and Revision: Revision Number: 0.100 Revision Date: 08-22-2019
