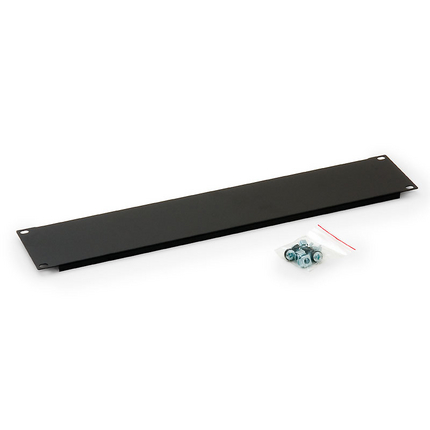

(4)Metal Solid Filler panel with cage nuts for E-Series.
| Suitable Applications: | Easy installable filler panel for 19” mounting using standard cage nuts. Installing the filler panel in the rack makes the installation look neat and tidy. Also the filler panel prevents airflow escaping to the back without passing through the active equipment |
| Environmental Space: | Indoor |
| Finish: | Powder Coated |
| Material: | 1.0 mm steel |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Packaging: | Individually packed. |
| Item # | Height | Color | Application |
|---|---|---|---|
| EDAP1012 | 1U | Black | E-Series Cabinets |
| EDAP1022 | 2U | Black | E-Series Cabinets |
| EDAP1032 | 3U | Black | E-Series Cabinets |
| EDAP1042 | 4U | Black | E-Series Cabinets |
| EDAP1011 | 1U | Gray | E-Series Cabinets |
| EDAP1021 | 2U | Gray | E-Series Cabinets |
| EDAP1031 | 3U | Gray | E-Series Cabinets |
| EDAP1041 | 4U | Gray | E-Series Cabinets |
| Update and Revision: | Revision Number: 0.121 Revision Date: 10-02-2024 |
