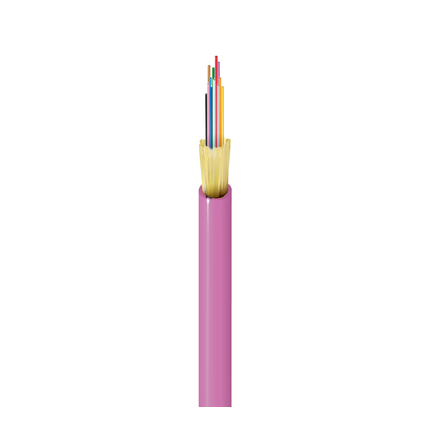

(10)FX Indoor OM4 Interconnect 12 Fibers OFNP Mini-Round 2.0mm (250um) Erika Violet Jacket
| Part Number: | FI4I012P0 |
| Construction Type: | Interconnect |
| Environmental Space: | Indoor |
| Suitable Applications: | Indoor |
| Fiber Type | Fiber Count |
|---|---|
| OM4 | 12 |
| Fiber Color Coding: | Blue, Orange, Green, Brown, Gray, White, Red, Black, Yellow, Violet, Pink, Aqua |
| Buffer Material |
|---|
| PVC |
| Bulk Cable Weight: | 2.3 lbs/1000ft |
| Material | Nominal Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.079 in (2 mm) |
| Color: | Erika Violet |
| Nominal Diameter: | 0.079 in |
| Effective Modal Bandwidth (EMB): | 4700 MHz-km / 500 MHz-km |
| Fiber Core Diameter: | 50/125μm |
| Max Attenuation at 1300 nm: | 1.2 dB/km |
| Max Attenuation at 850 nm: | 3.0 dB/km |
| Wavelength: | 850 nm / 1300 nm |
| 10 Gigabit Ethernet Performance: | 550 m / 300 m |
| 1 Gigabit Ethernet Performance: | - / 550 m |
| Min Overfilled Launch (OFL) Bandwidth: | 3500 MHz-km /550 Mhz-km |
| Description | Requirement/Value |
|---|---|
| Cable Min. Bend Radius Installation (Short Term) | 20x Cable OD |
| Cable Min. Bend Radius Operation (Long Term) | 10x Cable OD |
| Cable Max. Tensile Strength Installation (Short Term) | 11 N (50 lbf) |
| Cable Max. Tensile Strength Operation (Long Term) | 3 N (15 lbf) |
| Operating Temp Range: | 0C to +70C |
| Installation Temp Range: | 0C to +60C |
| Storage Temp Range: | -40C to +70C |
| UL Rating/Flame Test: | Plenum |
| CEC/C(UL) Specification: | FT6 |
| NEC/(UL) Specification: | OFNP |
| Telecommunications Standards: | ANSI/ICEA S-83-596 |
| RoHS: | Yes |
| Update and Revision: | Revision Number: 0.38 Revision Date: 01-31-2020 |
