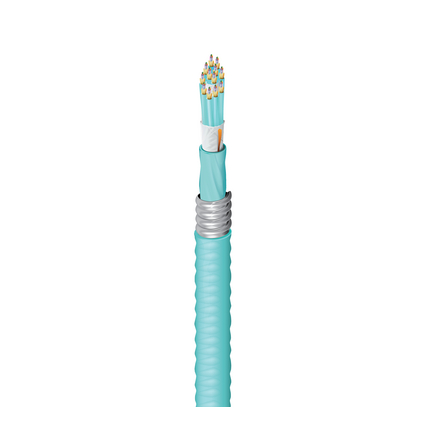

FI4D144AKA - Indoor Plenum OM4 Distribution 144F Aluminum Interlocked


FX Indoor OM4 Distribution Tight Buffer 144 Fibers OFCP Aluminum Interlocked Armor Sub-Units(12F) Aqua Jacket

Product Overview

Product Category: Fiber Distribution Cable
Suitable Applications: Premise Backbone

Fiber Specifications

Fiber Type: OM4
Fiber Core Diameter: 50/125 µm
Fiber Buffer Material: PVC - Polyvinyl Chloride
Fiber Buffer Diameter: 900 µm
Fiber Count: 144
Fiber Color Coding: TIA-598-D

Cable Construction

Number of Active Subunits: 12
Fibers Per Subunit: 12
SubUnit Diameter: 0.220 in (5.6 mm)
SubUnit Color@Fiber1: Aqua
SubUnit Strength members@Fiber1: Aramid yarns
Central Strength Member: Upjacketed GRP
Core Wrap: Nomex tape

Inner Jacket Specifications

Material@InnerJacket1: PVC - Polyvinyl Chloride
Nominal Diameter@InnerJacket1: 1.032 in
Color@InnerJacket1: Aqua
Number of Inner Jacket Ripcords: 1

Armor Specifications

Type of Armor: Interlocked
Armor, Material: Aluminum

Outer Jacket Specifications

Material@OuterJacket1 1: PVC - Polyvinyl Chloride
OuterJacket1, Nominal Diameter: 1.425 in (36.2 mm)
Outer Jacket Color: Violet
Optical Characteristics
Wavelength850 nm1300 nm
Max. Attenuation3.01.0
10 Gigabit Ethernet Performance550 m--
Min. Effective Modal Bandwidth (EMB)4700 MHz.km--
Min. Overfilled Launch (OFL) Bandwidth3500 MHz.km500 MHz.km

Mechanical Characteristics

Min Bend Radius During Installation: 20x Cable OD
Min Bend Radius During Operation: 10x Cable OD
Max Tensile Strength During Installation: 1320 N (300 lbf)
Max Tensile Strength During Operation: 400 N (90 lbf)
Crush Resistance: 440 N/cm
Bulk Cable Weight: 672 lbs/kft (999.5 kg/km)

Temperature Range

Installation Temp Range: 0°C to +60°C
Operating Temp Range: 0°C to +70°C
Storage Temp Range: -40°C to +70°C

Standards and Compliance

Environmental Suitability: Indoor
Sustainability: Product Lens(TM)=Yes, CA Prop 65 (CJ for Wire and Cable)=Yes
ICEA Compliance: S-83-596

History

Update and Revision: Revision Number: 0.67 Revision Date: 05-22-2020
