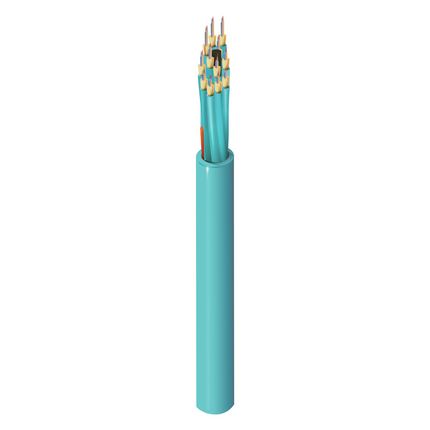

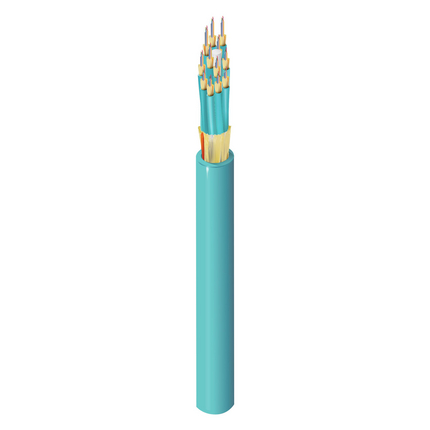

FI3M144P1 - Indoor Plenum OM3 Mini-Distribution 144F 2mm Sub-Units Aqua

FX Indoor OM3 Mini-Distribution 144 Fibers OFNP Sub-Units (2.0MM) Aqua Jacket

Part Number: FI3M144P1
Construction Type: Mini Distribution

Product Overview

Environmental Space: Indoor
Suitable Applications: Indoor


Fiber Cable Construction
Fiber TypeFiber Count
Central Strength Member: GRP
Bulk Cable Weight: 54.1 lbs/1000ft

SubUnit Specifications

Number of Active Subunits: 12
Number of Subunit Positions: 12
Fibers Per Subunit: 12
SubUnit Diameter: 0.078 in (2.0 mm)

Jacket Specifications

Number of Jackets: Single Jacket
Material: PVC
Outer Jacket Material
MaterialNominal Diameter
Thermoplastic0.39 in (9.9 mm)
Color: Aqua
Number of Ripcords: 2
Nominal Diameter: 0.390 (9.9)

Optical Characteristics

Effective Modal Bandwidth (EMB): 2000 MHz-km / 500 MHz-km
Fiber Core Diameter: 50/125
Max Attenuation at 1300 nm: 1.0 dB/km
Max Attenuation at 850 nm: 3.0 dB/km
Wavelength: 850 nm / 1300 nm
10 Gigabit Ethernet Performance: 300 m / 300 m
1 Gigabit Ethernet Performance: - / 550 m
Min Overfilled Launch (OFL) Bandwidth: 1500 MHz-km / 500 MHz-km

Mechanical Characteristics

Mechanical Tests
Cable Min. Bend Radius Installation (Short Term)20x Cable OD
Cable Min. Bend Radius Operation (Long Term)15x Cable OD
Cable Max. Tensile Strength Installation (Short Term)34 N (150 lbf)
Cable Max. Tensile Strength Operation (Long Term)10 N (45 lbf)

Temperature Range

Operating Temp Range: 0C to +70C
Installation Temp Range: 0C to +60C
Storage Temp Range: -40C to +70C


UL Rating/Flame Test: OFNP
NEC/(UL) Specification: N/A
C (UL) US: FT6
Telecommunications Standards: ANSI/ICEA S-83-596
RoHS: Yes


Item #ColorUPC
Update and Revision: Revision Number: 0.65 Revision Date: 03-13-2019
