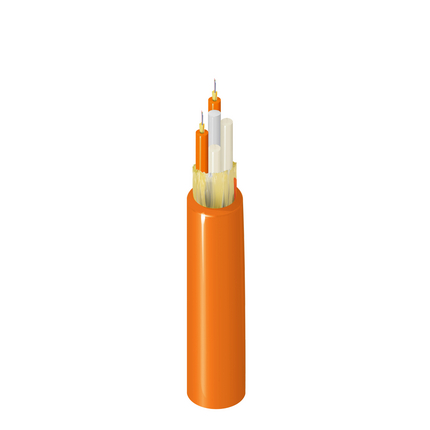

FI1M024P1 - Indoor Plenum OM1 Mini-Distribution 24F 2mm SubUnits Orange


FX Indoor OM1 Mini-Distribution 24 Fibers OFNP Sub-Units (2.0MM) Orange Jacket

Product Overview

Suitable Applications: Data Center, RAN, Horizontal Backbone, Premise Backbone, Patching, Trunking

Fiber Specifications

Fiber Type: OM1
Fiber Core Diameter: 62.5/125 µm
Fiber Diameter: 250 µm
Fiber Count: 24
Fiber Color Coding: TIA-598-D

Cable Construction

Number of Active Subunits: 2
Fibers Per Subunit: 12
Subunit Diameter: 0.078 in (2.0 mm)
Subunit Strength Members: Aramid yarns
Central Strength Member: GRP

Outer Jacket Specifications

Strength Member: Aramid yarns
Material: PVC - Polyvinyl Chloride
Nominal Diameter: 0.270 in (7.0 mm)
Color: Orange
Number of Ripcords: 2
Optical Characteristics
Wavelength850 nm1300 nm
Max. Attenuation3.5 dB/km1.2 dB/km
1 Gigabit Ethernet Performance300 m550 m
10 Gigabit Ethernet Performance32 m--
Min. Overfilled Launch (OFL) Bandwidth200 MHz.km600 MHz.km

Mechanical Characteristics

Min Bend Radius During Installation: 15x Cable OD
Min Bend Radius During Operation: 10x Cable OD
Max Tensile Strength During Installation: 670 N (150 lbf)
Max Tensile Strength During Operation: 200 N (45 lbf)
Crush Resistance: 110 N/cm
Bulk Cable Weight: 33 lbs/kft (49 kg/km)

Temperature Range

Installation Temp Range: 0C to +60C
Operating Temp Range: 0C to +70C
Storage Temp Range: -40C to +70C

Standards and Compliance

Environmental Suitability: Indoor
Sustainability: CA Prop 65
Flammability / Fire Resistance: OFNP, FT6
NEC / UL Compliance: N/A
ICEA Compliance: S-83-596
TIA/EIA Compliance: ANSI/ICEA S-83-596
