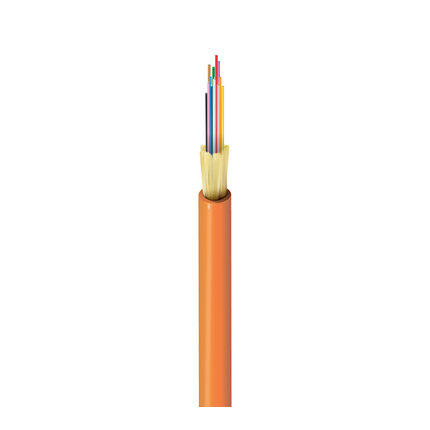

FI1I012P0 - Indoor Plenum OM1 Interconnect 12F MiniRound 2.0mm (250μm)

FX Indoor OM1 Interconnect 12 Fibers OFNP Mini-Round 2.0MM (250UM) Orange Jacket

Product Overview

Suitable Applications: Indoor

Fiber Specifications

Fiber Type: OM1
Fiber Core Diameter: 62.5/125μm
Buffer Material: PVC
Fiber Count: 12
Fiber Color Coding: Blue, Orange, Green, Brown, Gray, White, Red, Black, Yellow, Violet, Pink, Aqua

Outer Jacket Specifications

Material: PVC - Polyvinyl Chloride
Nominal Diameter: 0.079 in
Color: Orange
Optical Characteristics
Wavelength850 nm1300 nm
Max. Attenuation3.5 dB/km1.25 dB/km

Mechanical Characteristics

Min Bend Radius During Installation: 20x Cable OD
Min Bend Radius During Operation: 10x Cable OD
Max Tensile Strength During Installation: 50 lbf
Max Tensile Strength During Operation: 15 lbf
Bulk Cable Weight: 2.3 lbs/1000ft

Temperature Range

Installation Temp Range: 0C to +60C
Operating Temp Range: 0C to +70C
Storage Temp Range: -40C to +70C

Standards and Compliance

Environmental Suitability: Indoor
NEC / UL Compliance: OFNP
CEC / C(UL) Compliance: FT6
TIA/EIA Compliance: ANSI/ICEA S-83-596


Update and Revision: Revision Number: 0.49 Revision Date: 12-17-2020
