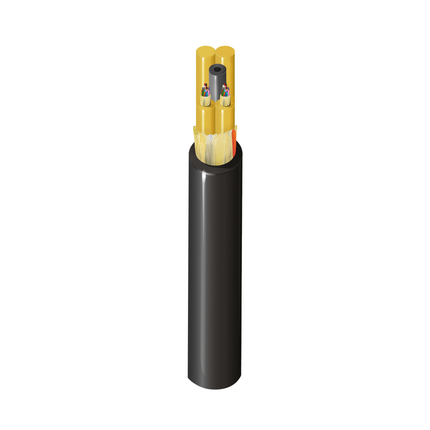

FDSR048R5 - Indoor/Outdoor OFNR OS2 Flexible Ribbon 48 Fibers 24F Subs

Indoor/Outdoor Riser OS2 Flexible Ribbon 48 Fibers 24F Subunit Black Jacket

Product Overview

Suitable Applications: Data Center, RAN, Horizontal Backbone, Premise Backbone

Fiber Specifications

Fiber Type: OS2
Fiber Core Diameter: 8.2/125μm µm
Fiber Count: 48
Fiber Color Coding: TIA-598-D

Cable Construction

Number of Active Subunits: 2
Number of Fillers: 2
Fibers Per Subunit: 24
Subunit Diameter: 0.118 in (3.0 mm)
Central Strength Member: GRP

Outer Jacket Specifications

Strength Member: Waterblocking aramid yarns
Material: PVC - Polyvinyl Chloride
Nominal Diameter: 0.40 in (10.2 mm)
Color: Black
Optical Characteristics
Wavelength850 nm1310 nm1550 nm
Max. Attenuation0.5 dB/km0.5 dB/km
1 Gigabit Ethernet Performance--5,000 m
10 Gigabit Ethernet Performance--10,000 m

Mechanical Characteristics

Min Bend Radius During Installation: 15x Cable OD
Min Bend Radius During Operation: 10x Cable OD
Max Tensile Strength During Installation: 1320 N (300 lbf)
Max Tensile Strength During Operation: 400 N (90 lbf)
Crush Resistance: 220 N/cm
Bulk Cable Weight: 60 lbs/kft (90 kg/km)

Temperature Range

Installation Temp Range: -10°C to +70°C
Operating Temp Range: -10°C to +70°C
Storage Temp Range: -40°C to +70°C

Standards and Compliance

Environmental Suitability: Indoor/Outdoor, Sunlight Resistance, Burial
Sustainability: CA Prop 65
Flammability / Fire Resistance: OFNR, FT4
ICEA Compliance: S-104-696
TIA/EIA Compliance: EIA/TIA 568-A, GR-409-CORE, ICEA-S-104-696

History

Update and Revision: Revision Number: 0.8 Revision Date: 01-06-2021
