FDSD072AK - Indoor/Outdoor Plenum OS2 Distribution Tight Buffer 72f

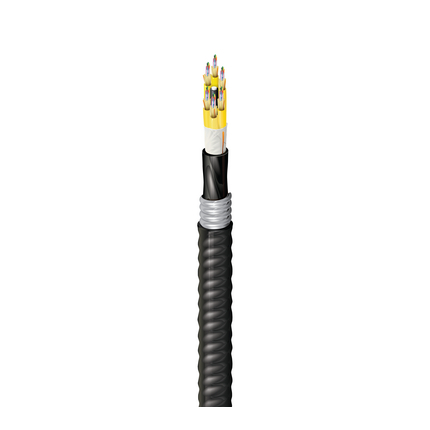

FX Indoor/Outdoor, Distribution Tight Buffered Cable, OS2, 72 Fibers, OFCP Aluminum Interlocked Armor, Sub-Units (12F), Black Jacket

Product Overview

Part Number: FDSD072AK
Construction Type: Distribution
Environmental Space: Indoor/Outdoor
Suitable Applications: Indoor / Outdoor


Fiber Cable Construction
Fiber TypeFiber Count
Fiber Type: OS2
Fiber Count: 72
Fiber Color Coding: Blue, Orange, Green, Brown, Gray, White, Red, Black, Yellow, Violet, Pink, Aqua
Buffer Specification
Buffer MaterialBuffer Diameter
Thermoplastic900 μm
Central Strength Member: Upjacketed GRP
Cable Core Water Blocking: Waterblocking Tape

SubUnit Specifications

Number of Active Subunits: 6
Number of Subunit Positions: 6
Fibers Per Subunit: 12
SubUnit Diameter: 0.220 in (5.6 mm)
SubUnit Waterblocking: Water Blocking Aramid Yarns

Jacket Specifications

Number of Jackets: Double Jacket
Type of Armor: Interlocked Aluminum
Number of Inner Jacket Ripcords: 1
Color@InnerJacket1: Black
Nominal Diameter@InnerJacket1: 0.76 in
Material@InnerJacket1: PVDF
Outer Jacket Material
MaterialNominal Diameter
PVC1.06 in (26.9 mm)
Outer Jacket Color: Black
Number of Outer Jacket Ripcords: 1

Optical Characteristics

Mode Field Diameter: 9.2
Fiber Core Diameter: 8.2/125μm
Max Attenuation at 1310 nm: 0.5 dB/km
Max Attenuation at 1550 nm: 0.5 dB/km
Wavelength: 1310 nm / 1550 nm
10 Gigabit Ethernet Performance: 10,000 m / 40,000 m
1 Gigabit Ethernet Performance: 5,000 m / -
Min Overfilled Launch (OFL) Bandwidth: 3500 MHz*km / 500 MHz*km

Mechanical Characteristics

Min Bend Radius During Installation: 20x Cable OD
Min Bend Radius During Operation: 10x Cable OD
Max Tensile Strength During Installation: 135 N (600 lbf)
Max Tensile Strength During Operation: 45 N (200 lbf)
Crush Resistance: 10 N/cm
Impact Resistance: 10 N/cm

Temperature Range

Operating Temp Range: -40C to +70C
Installation Temp Range: -20C to +70C
Storage Temp Range: -40C to +70C


UL Rating/Flame Test: Plenum
CEC/C(UL) Specification: OFNP
NEC/(UL) Specification: OFCP
Telecommunications Standards: ANSI/ICEA S-104-696
REACH: REACH EC1907-2006
RoHS: Yes
Testing Criteria: ICEA S-83-596
