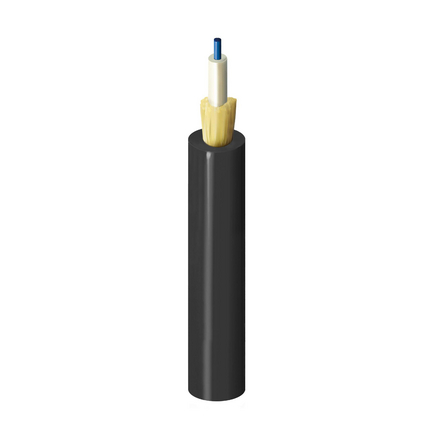

(4)FX Indoor/Outdoor, OS2 G.657.B3, Drop, 1 Fiber, OFNR, Black Jacket, Reel-in-box - 450m
| Product Category: | Fiber Drop Cable |
| Suitable Applications: | Provides easy routing and 900 µm tight-buffered fiber supports fast and robust field terminations. Ideal for fiber-to-the-subscriber applications |
| Fiber Type: | OS2, G.657.B3, G.652.D |
| Fiber Core Diameter: | 250 µm |
| Fiber Diameter: | 900 µm |
| Fiber Count: | 1 |
| Fiber Color Coding: | TIA-598-D |
| Strength Member: | Aramid Yarns |
| Jacket Material: | PVC - Polyvinyl Chloride |
| Nom. Diameter: | 0.188 in (4.8 mm) |
| Color: | Black |
| Wavelength | 1310 nm | 1550 nm |
|---|---|---|
| Max. Attenuation | 0.5 dB/km | 0.5 dB/km |
| Mode Field Diameter | 9.2 µm | 10.4 µm |
| 1 Gigabit Ethernet Performance | 5000 m | -- |
| 10 Gigabit Ethernet Performance | 10000 m | 50000 m |
| Min. Bend Radius During Installation: | 15X Cable OD |
| Min. Bend Radius During Operation: | 10x Cable OD |
| Max. Tensile Strength During Installation: | 800 N (180 lbf) |
| Max. Tensile Strength During Operation: | 240 N (54 lbf) |
| Crush Resistance: | 100 N/cm |
| Bulk Cable Weight: | 13.2 lbs/kft (19.6 kg/km) |
| Installation Temperature Range: | -10°C to +60°C |
| Operating Temperature Range: | -40°C to +70°C |
| Storage Temperature Range: | -40°C to +70°C |
| Environmental Suitability: | Indoor/Outdoor, Sunlight Resistance |
| Flammability / Reaction to Fire: | UL 1666, UL 1685, FT4 |
| NEC / UL Compliance: | OFNR |
| CEC / C(UL) Compliance: | OFNR |
| TIA/EIA Compliance: | 598-D |
| European Directive Compliance: | EU Directive 2015/863/EU (RoHS 2 amendment) |
| Update and Revision: | Revision Number: 0.28 Revision Date: 07-10-2025 |
