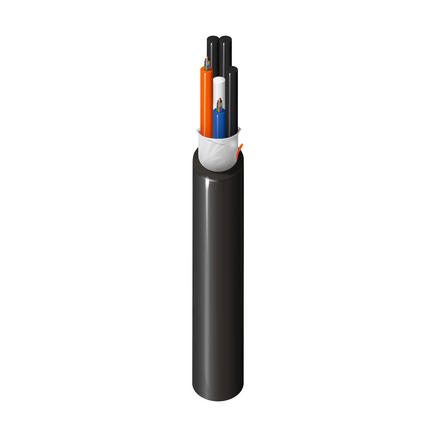

FD4L024PD - Indoor/Outdoor Plenum Loose Tube OM4 24F Unitized

FX Indoor/Outdoor Loose Tube OM4 24 Fibers OFNP Sub-Units(12F) Dry Black

Product Overview

Suitable Applications: Campus Area Network, Backbone

Fiber Specifications

Fiber Type: OM4
Fiber Core Diameter: 50/125 µm
Fiber Diameter: 250 µm
Fiber Count: 24
Fiber Color Coding: TIA-598-D

Cable Construction

Number of Active Subunits: 2
Number of Fillers: 3
Fibers Per Subunit: 12
Subunit Waterblocking: Gel Free
Subunit Diameter: 0.098 in (2.5 mm)
Subunit Color: TIA-598-D
Subunit Strength Members: Waterblocking aramid yarns
Central Strength Member: GRP
Core Wrap: Waterblocking tape

Outer Jacket Specifications

Strength Member: Waterblocking aramid yarns
Material: PVC - Polyvinyl Chloride
Nominal Diameter: 0.370 in (9.4 mm)
Number of Ripcords: 2
Optical Characteristics
Wavelength850 nm1300 nm
Max. Attenuation3 dB/km1.0 dB/km
1 Gigabit Ethernet Performance1,100 m550 m
10 Gigabit Ethernet Performance550 m-
Min. Effective Modal Bandwidth (EMB)4,700
Min. Overfilled Launch (OFL) Bandwidth3,500 MHz.km500

Mechanical Characteristics

Min. Bend Radius During Installation: 15x Cable OD
Min Bend Radius During Operation: 10x Cable OD
Max Tensile Strength During Installation: 2670 N (600 lbf)
Max Tensile Strength During Operation: 800 N (180 lbf)
Crush Resistance: 220 N/cm
Bulk Cable Weight: 55 lbs/kft (82 kg/km)

Temperature Range

Installation Temp Range: -0°C to +60°C
Operating Temp Range: -40°C to +70°C
Storage Temp Range: -40°C to +70°C

Standards and Compliance

Environmental Suitability: Indoor/Outdoor, Sunlight Resistance
Sustainability: CA Prop 65
Flammability / Fire Resistance: OFNP, FT6
ICEA Compliance: S-104-696
TIA/EIA Compliance: ANSI/ICEA S-104-696


Update and Revision: Revision Number: 0.60 Revision Date: 04-06-2021
