FD4D096FK - Indoor/Outdoor Riser OM4 Distribution 96F Aluminum Interlocked

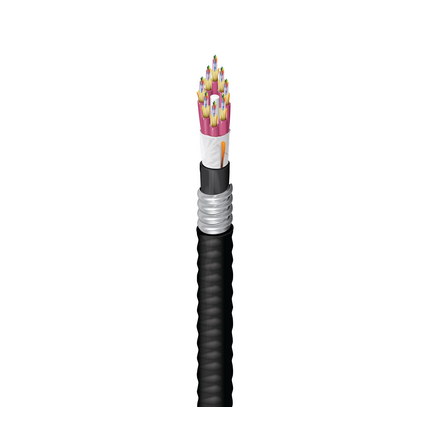

FX Indoor/Outdoor OM4 Distribution Tight Buffer 96 Fibers OFCR Aluminum Interlocked Armor Sub-Units(12F) Black Jacket

Product Overview

Product Category: Fiber Distribution Cable
Suitable Applications: Premise Backbone

Fiber Specifications

Fiber Type: OM4
Fiber Core Diameter: 50/125 µm
Buffer Material: PVC - Polyvinyl Chloride
Buffer Diameter: 900 µm
Fiber Count: 96
Fiber Color Coding: TIA-598-D

Cable Construction

Number of Active Subunits: 8
Fibers Per Subunit: 12
SubUnit Diameter: 0.230 in (5.8 mm)
SubUnit Color: Erika Violet
Subunit Strength Members: Waterblocking aramid yarns
Central Strength Member: Upjacketed GRP
Core Wrap: Waterblocking tape

Inner Jacket Specifications

Material: PVC - Polyvinyl Chloride
Nominal Diameter: 0.977 in (24.8 mm)
Color: Black
Number of Ripcords: 1

Armor Specifications

Type of Armor: Interlocked
Armor Material: Aluminum

Outer Jacket Specifications

Material: PVC - Polyvinyl Chloride
Nominal Diameter: 1.390 in (35.3 mm)
Color: Black
Optical Characteristics
Wavelength850 nm1300 nm
Max. Attenuation3.0 dB/km1.0 dB/km
10 Gigabit Ethernet Performance550 m--
Min. Effective Modal Bandwidth (EMB)4700 MHz.km--
Min. Overfilled Launch (OFL) Bandwidth3500 MHz.km500 MHz.km

Mechanical Characteristics

Min Bend Radius During Installation: 20x Cable OD
Min Bend Radius During Operation: 10x Cable OD
Max Tensile Strength During Installation: 2670 N (600 lbf)
Max Tensile Strength During Operation: 800 N (180 lbf)
Crush Resistance: 440 N/cm
Bulk Cable Weight: 631 lbs/kft (939 kg/km)

Temperature Range

Installation Temp Range: -10°C to +60°C
Operating Temp Range: -40°C to +70°C
Storage Temp Range: -40°C to +70°C

Standards and Compliance

Environmental Suitability: Indoor/Outdoor, Sunlight Resistance, Burial
Sustainability: Product Lens(TM)=Yes, CA Prop 65 (CJ for Wire and Cable)=Yes
ICEA Compliance: S-104-696

History

Update and Revision: Revision Number: 0.65 Revision Date: 05-26-2020
