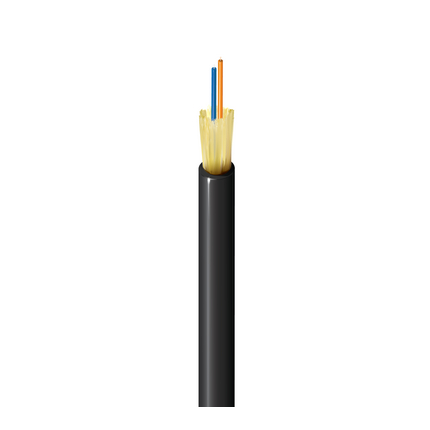

FD2D002P9 - Indoor/Outdoor Plenum OM2 Distribution Tight Buffer 2f

FX Indoor/Outdoor OM2 Distribution Tight Buffer 2 Fibers OFNP Non-Unitized Black Jacket

Product Overview

Part Number: FD2D002P9
Construction Type: Distribution
Environmental Space: Indoor/Outdoor
Suitable Applications: Indoor / Outdoor


Fiber Cable Construction
Fiber TypeFiber Count
Fiber Type: OM2
Fiber Count: 2
Fiber Color Coding: Blue, Orange
Buffer Specification
Buffer MaterialBuffer Diameter
Thermoplastic900 μm
Cable Core Water Blocking: Waterblocking Aramid Yarns

SubUnit Specifications

Fibers Per Subunit: 2

Jacket Specifications

Number of Jackets: Single Jacket
Outer Jacket Material
MaterialNominal Diameter
PVC0.18 in (4.6 mm)
Outer Jacket Color: Black
Number of Outer Jacket Ripcords: 1

Optical Characteristics

Effective Modal Bandwidth (EMB): 950 MHz-km / 500 MHz-km
Fiber Core Diameter: 50/125μm
Max Attenuation at 1300 nm: 1.25 dB/km
Max Attenuation at 850 nm: 3.5 dB/km
Wavelength: 850 nm / 1300 nm
10 Gigabit Ethernet Performance: 150 m / 300 m
1 Gigabit Ethernet Performance: 550 m / 550 m
Min Overfilled Launch (OFL) Bandwidth: 700 MHz-km / 500 MHz-km

Mechanical Characteristics

Min Bend Radius During Installation: 20x Cable OD
Min Bend Radius During Operation: 10x Cable OD
Max Tensile Strength During Installation: 28 N (125 lbf)
Max Tensile Strength During Operation: 11 N (50 lbf)

Temperature Range

Operating Temp Range: -40C to +70C
Installation Temp Range: -20C to +70C
Storage Temp Range: -40C to +70C


UL Rating/Flame Test: Plenum
CEC/C(UL) Specification: OFNP
Telecommunications Standards: ANSI/ICEA S-104-696
RoHS: Yes


Item #ColorUPC
