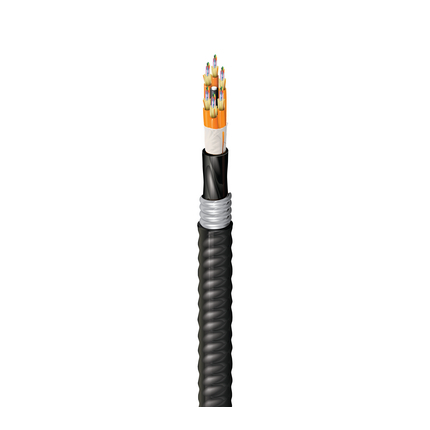

FD1D072AK - Indoor/Outdoor Plenum OM1 Distribution 72F Aluminum Interlocked


FX Indoor/Outdoor OM1 Distribution Tight Buffer 72 Fibers OFCP Aluminum Interlocked Armor Sub-Units(12F) Black Jacket

Product Overview

Product Category: Fiber Distribution Cable
Suitable Applications: Premise Backbone

Fiber Specifications

Fiber Type: OM1
Fiber Core Diameter: 62.5/125 µm
Fiber Buffer Material: PVC - Polyvinyl Chloride
Fiber Buffer Diameter: 900 µm
Fiber Count: 72
Fiber Color Coding: TIA-598-D

Cable Construction

Number of Active Subunits: 6
Fibers Per Subunit: 12
SubUnit Diameter: 0.220 in (5.6 mm)
SubUnit Color@Fiber1: Orange
SubUnit Strength members@Fiber1: Waterblocking aramid yarns
Central Strength Member: Upjacketed GRP
Core Wrap: Waterblocking and nomex tape

Inner Jacket Specifications

Material@InnerJacket1: PVC - Polyvinyl Chloride
Nominal Diameter@InnerJacket1: 0.756 in
Color@InnerJacket1: Black
Number of Inner Jacket Ripcords: 1

Armor Specifications

Type of Armor: Interlocked
Armor, Material: Aluminum

Outer Jacket Specifications

Material@OuterJacket1 1: PVC - Polyvinyl Chloride
OuterJacket1, Nominal Diameter: 1.110 in (28.2 mm)
Outer Jacket Color: Black
Optical Characteristics
Wavelength850 nm1300 nm
Max. Attenuation3.51.25
1 Gigabit Ethernet Performance300 m550 m
10 Gigabit Ethernet Performance33 m--
Min. Restricted Mode Launch 220 MHz.km500 MHz.km
Min. Overfilled Launch (OFL) Bandwidth200 MHz.km500 MHz.km

Mechanical Characteristics

Min Bend Radius During Installation: 20x Cable OD
Min Bend Radius During Operation: 10x Cable OD
Max Tensile Strength During Installation: 2670 N (600 lbf)
Max Tensile Strength During Operation: 800 N (180 lbf)
Crush Resistance: 440 N/cm
Bulk Cable Weight: 384 lbs/kft (571 kg/km)

Temperature Range

Installation Temp Range: 0°C to +60°C
Operating Temp Range: -40°C to +70°C
Storage Temp Range: -40°C to +70°C

Standards and Compliance

Environmental Suitability: Indoor/Outdoor, Sunlight Resistance, Burial
Sustainability: Environmental Product Declaration (EPD)=Yes, Product Lens(TM)=Yes, CA Prop 65 (CJ for Wire and Cable)=Yes
ICEA Compliance: S-104-696

History

Update and Revision: Revision Number: 0.59 Revision Date: 05-22-2020
