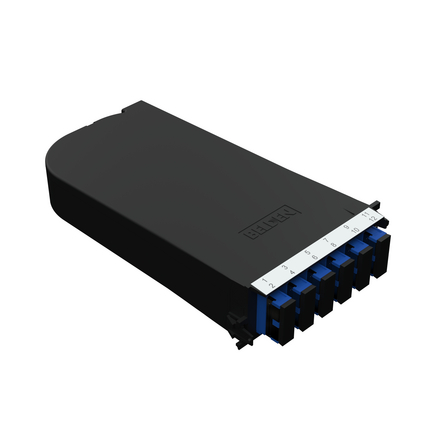

(4)FX UHD CASSETTE, OS2, 06 PORTS, SPLICING, SC DUPLEX, BLUE ADAPTERS
| Environmental Space: | Indoor |
| Suitable Applications: | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
| Fiber Type |
|---|
| OS2 |
| Weight: | 0.500 lbs |
| Height: | 1.5 in |
| Width: | 4.5 in |
| Length: | 9.08 in |
| Max Capacity: | 36 Fibers, 18 SC Duplex Ports |
| Front Connection: | Static |
| Operating Temperature Range: | -10°C to 60°C |
| Storage Temperature Range: | -10°C to 75°C |
| Description | Material | Color | Type |
|---|---|---|---|
| Adapter Sleeve | Zirconia-Ceramic | ||
| Front Connector Body | Plastic - UL94V-0 | Blue | SC-Simplex |
| Cassette Assembly | Plastic - UL94V-0 | Black |
| Connector Type | Max. Insertion Loss | Min. Return Loss |
|---|---|---|
| SC Duplex | 0.25 dB | -55 dB |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Related Parts: | FX UHD & FXU Patch Panels, FX MPO Trunks |
| Item # | Color | Connector Type |
|---|---|---|
| FCSH06SDFS | Blue | SC Duplex |
| Packaging: | Individually packaged in a plastic shell, Shipped in cardboard box (14/box) |
| Update and Revision: | Revision Number: 0.27 Revision Date: 02-12-2025 |
