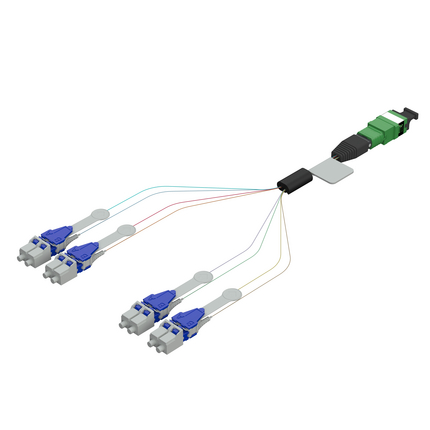

(4)FANOUT OS2 04P MPO12(F) - 8F_LC/UPC DUPLEX WITH PULL TAB CONNECTOR SR4, BLUE
| Environmental Space: | Indoor |
| Suitable Applications: | Data Center, LAN, Equipment Room, Telecommunication room, Workstation Area |
| Fiber Type | Fiber Count |
|---|---|
| OS2 | 8 |
| Length: | 200 mm |
| Fiber Core Diameter: | 9/125 µm |
| Description | Requirement/Value |
|---|---|
| Cable Min. Bend Radius Installation (Short Term) | 15x Cable OD |
| Cable Min. Bend Radius Operation (Long Term) | 10x Cable OD |
| Operating Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -10°C To +60°C |
| Description | Material | Color | Type |
|---|---|---|---|
| Connectors for end 1 | Plastic | Green | MPO-12 Female |
| Connectors for end 2 | Plastic | Blue | LC Duplex Pull tab |
| Boots for end 1 | Rubber | Black | |
| Boots for end 2 | Rubber | White | 900 um Mini boot |
| Ferrules for end 2 | Zirconia-Ceramic | 1.25 mm | |
| Jacket | OFN | 900 um Tight buffer, Heat shrink transition |
| Polarity Identification: | SR4 |
| Description | Connector Type | Max. Insertion Loss | Min. Return Loss |
|---|---|---|---|
| Connectors for end 1 | MPO-12 Female | 0.35 dB | -60 dB |
| Connectors for end 2 | LC Duplex | 0.25 dB | -55 dB |
| TIA/EIA Compliance: | TIA 568-3 |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Safety Listing: | ACMA |
| Packaging: | Individually packaged in a plastic bag |
| Notes: | Velcro (1in long), ID color labels and Dust caps are included |
| Update and Revision: | Revision Number: 0.33 Revision Date: 04-28-2025 |
