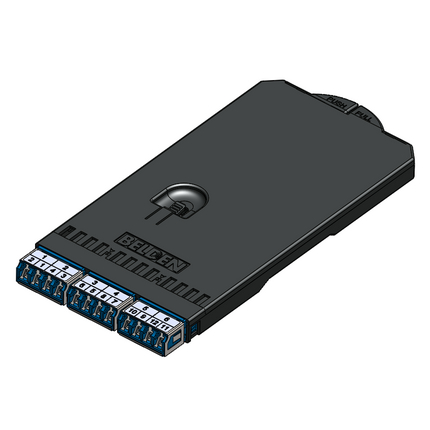

(4)FX DCX SPLICE CASSETTE, OS2, 06 PORTS, LC DUPLEX (FLIPPED PAIR) WITH 250µm RIBBON PIGTAIL, BLUE ADAPTERS
| Environmental Space: | Indoor |
| Suitable Applications: | DCX, Data Centers, Central Equipment Room |
| Fiber Type |
|---|
| OS2 |
| Weight: | 0.189 lbs |
| Height: | 0.500 in |
| Width: | 3.400 in |
| Length: | 7.190 in |
| Max Capacity: | 12Fibers, 6 LC Duplex Ports |
| Operating Temperature Range: | -10°C to 60°C |
| Storage Temperature Range: | -10°C to 75°C |
| Description | Material | Color | Type |
|---|---|---|---|
| Cassette Assembly | Plastic - UL94V-0 | Black | |
| Front Connector Body | Plastic - UL94V-0 | Blue | LC Duplex w/ Internal Shutters |
| Adapter Sleeve | Zirconia-Ceramic |
| Description | Max. Insertion Loss | Min. Return Loss |
|---|---|---|
| LC Duplex | 0.25 dB | -55 dB |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Included Parts: | 250µm mass fusion pigtails, splice chip, splice protectors |
| Related Parts: | DCX,Frames Modules & Patch Panels |
| Packaging: | Individually packaged in a plastic shell, Shipped in cardboard box |
| Notes: | Splice chip and protector sleeve are included. Splice chip is compatible with Belden splice sleeve FXFUHSRIBEB12 (Oval x 40mm long) Post-Shrink Diameter. For more information, please refer to our web site at http://www.belden.com |
| Update and Revision: | Revision Number: 0.8 Revision Date: 02-06-2024 |
