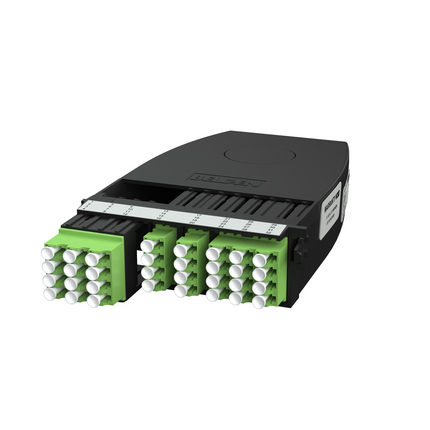

(4)FX ULTRA CASSETTE, OM5, 16 PORTS, MPO-12 (FEMALE) BASE 8, LC DUPLEX, 40G/100G SR4, LIME GREEN ADAPTERS
| Environmental Space: | Indoor |
| Suitable Applications: | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
| Fiber Type |
|---|
| OM5 |
| Weight: | 0.6 lbs |
| Height: | 1.5 in |
| Width: | 4.5 in |
| Length: | 7.890 in |
| Max Capacity: | 32 Fibers |
| Front Connection: | 1 Inch Pullout |
| Operating Temperature Range: | -10°C to +60°C |
| Storage Temperature Range: | -10°C To +75°C |
| Description | Material | Color | Type |
|---|---|---|---|
| Adapter Sleeve | Zirconia-Ceramic | ||
| Bezel Assembly | Plastic - UL94V-0 | Lime Green | LC Duplex |
| Cassette assembly | Plastic - UL94V-0 | Black | |
| MPO Adapter | Plastic - UL94V-0 | Lime Green | MPO Adapter |
| Polarity Identification: | Type-A |
| Description | Total Insertion Loss | Total Return Loss |
|---|---|---|
| OM5 | 0.35 dB | -25 dB |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Related Parts: | FX UHD & FXU Patch Panels, FX MPO Trunks |
| Packaging: | Individually packaged in a plastic shell, Shipped in cardboard box (14/box) |
| Update and Revision: | Revision Number: 0.19 Revision Date: 06-10-2025 |
