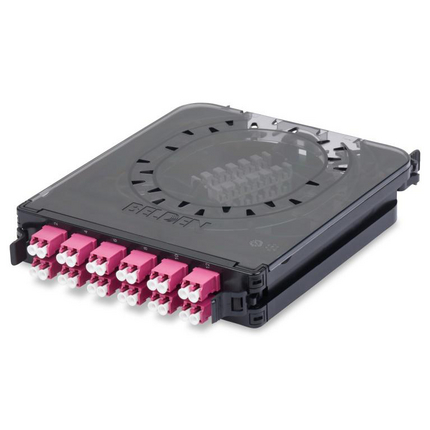

FC4X12LDFP - FX ECX CASS OM4 12P W/250-PT LC_DX EV_ADP

FX ECX CASSETTE, OM4, 12 PORTS, WITH 250um PIGTAILS, LC DUPLEX, ERIKA VIOLET ADAPTERS

Product Overview

Environmental Space: Indoor
Suitable Applications: FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers

Construction

Fiber Cable Construction
Fiber Type
OM4
Weight: 0.280 lbs.
Height: 1.300 in
Width: 6.340 in
Length: 8.740 in

Physical Specifications

Max Capacity: 24 Fibers, 12 LC Duplex Ports

Mechanical Characteristics

Front Connection: Static

Temperature Range

Operating Temp Range: -10°C To +60°C
Storage Temp Range: -10°C To +75°C

Product Material

Materials
DescriptionMaterialColor
Adapter SleeveZirconia-Ceramic
Front Connector BodyPlastic - UL94V-0Erika Violet
Cassette AssemblyPlastic - UL94V-0Black

Standards

EU RoHS Compliance Date (yyyy-mm-dd): 2013-01-01
MII Order #39 (China RoHS): EUP 50

Part Number

Included Parts: 250um pigtails, splice sleeves, and cable ties
Related Parts: FX ECX Panels, Belden Splice Sleeves (see notes)

Product Notes

Packaging: Individually packaged in a plastic shell, shipped in cardboard box (12/box)
Notes: Splice holder is included. Splice holder compatible with Belden splice sleeves part numbers (Post-Shrink Diameter): FXFUHS900AB25(2.5mm), FXFUHS9T2CB25 (2.0mm), FXFUHS250DB25 (1.5mm), and FXFUHSRIBEB12 (oval 4.1mm x 4.6mm). For additional information about this product, please contact our Technical Support group (ibdn.ts@belden.com) or your local sales representative.

History

Update and Revision: Revision Number: 0.7 Revision Date: 07-29-2020
Date: 2013-01-01
