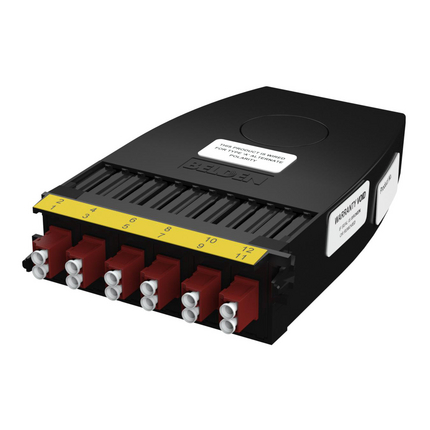

(4)FX ULTRA CASSETTE, OM4, 06 PORTS, MPO-12 FEMALE, TYPE-ALT LC DUPLEX KEYED
| Environmental Space: | Indoor |
| Suitable Applications: | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
| Fiber Type |
|---|
| OM4 |
| Height: | 1.5 in |
| Width: | 4.5 in |
| Length: | 6.6 in |
| Front Connection: | 1 Inch Pullout |
| Operating Temperature Range: | -10 to 60°C |
| Storage Temperature Range: | -10 to 75°C |
| Description | Material | Color | Type |
|---|---|---|---|
| Adapter Sleeve | Zirconia-Ceramic | ||
| Front Connector Body | Plastic - UL94V-0 | Red | LC Keyed |
| Cassette assy | Plastic - UL94V-0 | Black | 1.25mm |
| Max. Insertion Loss | Min. Return Loss |
|---|---|
| 0.15 dB | -30 dB |
| 0.2 dB | -30 dB |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| Related Parts: | FX UHD & FXU Patch Panels, FX MPO Trunks |
| Item # | Connector Type |
|---|---|
| FC4U06LKMF1A | LC Keyed Aqua |
| FC4U06LKMF1B | LC Keyed Blue |
| FC4U06LKMF1G | LC Keyed Green |
| FC4U06LKMF1M | LC Keyed Brown |
| FC4U06LKMF1N | LC Keyed Black |
| FC4U06LKMF1O | LC Keyed Orange |
| FC4U06LKMF1P | LC Keyed Rose |
| FC4U06LKMF1R | LC Keyed Red |
| FC4U06LKMF1S | LC Keyed Gray |
| FC4U06LKMF1V | LC Keyed Violet |
| FC4U06LKMF1W | LC Keyed White |
| FC4U06LKMF1Y | LC Keyed Yellow |
| Packaging: | Individually packaged in a plastic shell, Shipped in cardboard box (14/box) |
| Update and Revision: | Revision Number: 0.2 Revision Date: 05-09-2025 |
