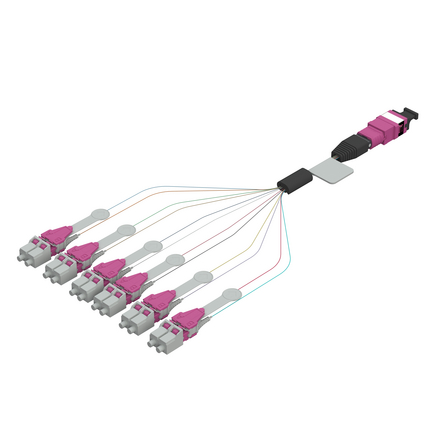

(4)FANOUT OM4 06P MPO12(F) - 12F_LC/PC DUPLEX WITH PULL TAB CONNECTOR TYPE-A, ERIKA VIOLET
| Environmental Space: | Indoor |
| Suitable Applications: | Data Center, LAN, Equipment Room, Telecommunication room, Workstation Area |
| Fiber Type | Fiber Count |
|---|---|
| OM4 | 12 |
| Length: | 200 mm |
| Fiber Core Diameter: | 50/125 µm |
| Description | Requirement/Value |
|---|---|
| Cable Min. Bend Radius Installation (Short Term) | 15x Cable OD |
| Cable Min. Bend Radius Operation (Long Term) | 10x Cable OD |
| Operating Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -10°C To +60°C |
| Description | Material | Color | Type |
|---|---|---|---|
| Connectors for end 1 | Plastic | Erika Violet | MPO-12 Female |
| Connectors for end 2 | Plastic | Erika Violet | LC Duplex Pull tab |
| Boots for end 1 | Rubber | Black | |
| Boots for end 2 | Rubber | White | 900 um Mini boot |
| Ferrules for end 2 | Zirconia-Ceramic | 1.25 mm | |
| Jacket | OFN | 900 um Tight buffer, Heat shrink transition |
| Polarity Identification: | Type-A |
| Description | Connector Type | Max. Insertion Loss | Min. Return Loss |
|---|---|---|---|
| Connectors for end 1 | MPO-12 Female | 0.20 dB | -25 dB |
| Connectors for end 2 | LC Duplex | 0.15 dB | -25 dB |
| TIA/EIA Compliance: | TIA 568-3 |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Safety Listing: | ACMA |
| Packaging: | Individually packaged in a plastic bag |
| Notes: | Velcro (1in long), ID color labels and Dust caps are included |
| Update and Revision: | Revision Number: 0.29 Revision Date: 04-28-2025 |
