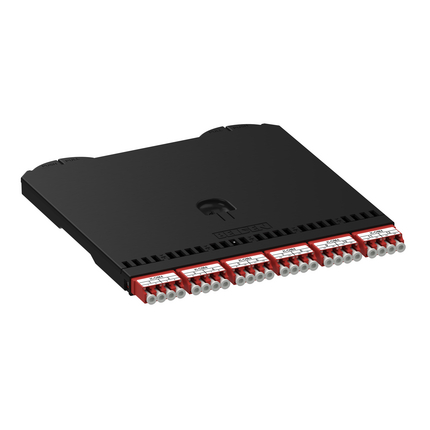

(4)FX DCX Splice Cassette, OM4, 12 Ports LC KEYED Duplex with 250µm Mass fusion ribbon Pigtails, Varying adapters
| Environmental Space: | Indoor |
| Suitable Applications: | DCX, Data Centers, Central Equipment Room |
| Fiber Type |
|---|
| OM4 |
| Weight: | 0.189 lbs |
| Overall Height: | 0.500 in |
| Overall Width: | 6.830 in |
| Overall Length: | 7.200 ft |
| Max Capacity: | 24 Fibers |
| Front Connection: | Static |
| Operating Temperature Range: | -10 to 60°C |
| Storage Temperature Range: | -10 to 60°C |
| Description | Material | Color | Type |
|---|---|---|---|
| Cassette Assembly | Plastic - UL94V-0 | Black | |
| Front Connector Body | Plastic - UL94V-0 | Follow Variant table | LC KEYED Duplex |
| Adapter Sleve | Zirconia-Ceramic |
| Max. Insertion Loss | Min. Return Loss |
|---|---|
| 0.25 dB | -30 dB |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Included Parts: | 250µm pigtails, splice chip, splice protection sleeve, micro splice protection sleeve, cable retention rubber: 2mm & 3mm |
| Related Parts: | DCX Frames, Modules, and Patch Panels |
| Item # | Connector Type |
|---|---|
| FC4D12LKFMNA | LC Keyed Duplex Aqua |
| FC4D12LKFMNB | LC Keyed Duplex Blue |
| FC4D12LKFMNG | LC Keyed Duplex Green |
| FC4D12LKFMNM | LC Keyed Duplex Brown |
| FC4D12LKFMNN | LC Keyed Duplex Black |
| FC4D12LKFMNO | LC Keyed Duplex Orange |
| FC4D12LKFMNP | LC Keyed Duplex Rose |
| FC4D12LKFMNR | LC Keyed Duplex Red |
| FC4D12LKFMNS | LC Keyed Duplex Gray |
| FC4D12LKFMNV | LC Keyed Duplex Violet |
| FC4D12LKFMNW | LC Keyed Duplex White |
| FC4D12LKFMNY | LC Keyed Duplex Yellow |
| Packaging: | Individually packaged in a plastic shell, Shipped in cardboard box |
| Update and Revision: | Revision Number: 0.8 Revision Date: 10-21-2025 |
