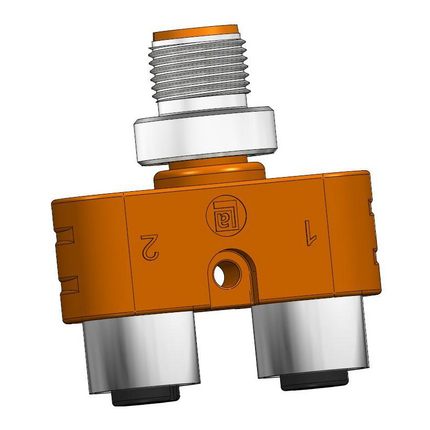

(4)T-Splitter with 2 M12 female connectors and 1 M12 male connector, 1 mounting hole, 5-pin, A-coded, orange body, 60 V, 4 A
| Product Family: | Sensor / Actuator Connectors |
| Brand: | Lumberg Automation |
| Connector Type: | T-Splitter |
| Shielding Type: | Unshielded |
| Voltage Rating: | 60 V |
| Current Rating: | 4 A |
| Attachment Type: | Coupling Nut/Screw, CuZn, nickel-plated |
| Number of Pins: | 5 |
| Coding, Side 1: | A |
| Contact Resistance: | ≤ 10 mOhm |
| Insulation Resistance: | ˃ 100 Ohm |
| Mating Cycles: | ≤ 100 |
| Ambient Temperature (Operation)*: | - 25 °C - + 90 °C |
| Protection Degree / IP Rating**: | IP 67 |
| Contact Base Material: | CuZn, gold-plated |
| O-Ring Material: | FKM |
| Note: | Do not connect or disconnect under load. |
| RoHS Compliant: | yes |
| Protection Degree / IP Rating Note: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note Derating: | Notice derating |
| Update and Revision: | Revision Number: 0.10 Revision Date: 09-29-2025 |
| Item # |
|---|
| 900062201 |
