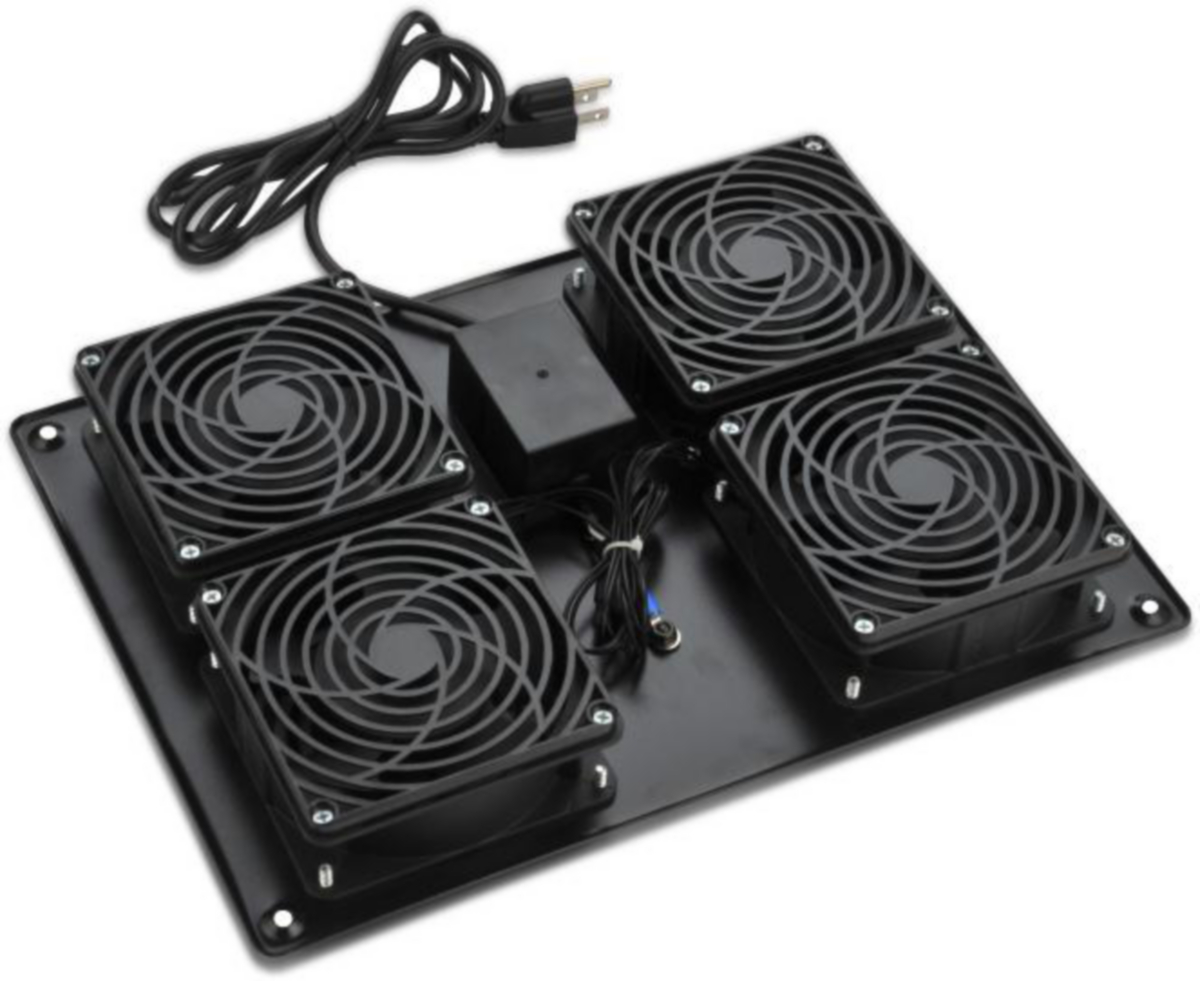

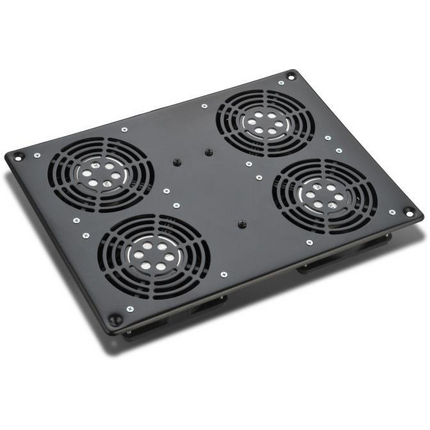

FAN UNIT W/O THERMOSTAT A-SERI - Fan unit with power cord for A-Serie Cabinets

Fan units especially made to fit all Belden A-series free standing cabinets. Can be installed into the top cover where a blind panel is available. The unit can be installed from outside of the enclosure, fixing it by 4 bolts.

Application

Suitable Applications: Ventilating hot air from the cabinets via the top
Environmental Space: Indoor

Mechanical Construction

Cord Length: 1.9 m

Environmental and Overall Characteristics

Material: SPCC cold rolled steel

Standards

EU CE Mark: Yes
EU Directive 2011/65/EU (ROHS II): Compliant

Part Number

Packaging: Individually packed in a box.
Variants
Item #Number of Fans Plug TypeColor
ADAF4B212BS 1363PGray
ADAF4B222BS 1363PBlack
ADAF4B414BS 1363PGray
ADAF4B424BS 1363PBlack
ADAF4G21216A SchukoGray
ADAF4G22216A SchukoBlack
ADAF4G41416A SchukoGray
ADAF4G42416A SchukoBlack
ADAF4N2125-15PGray
ADAF4N2225-15PBlack
ADAF4N4145-15PGray
ADAF4N4245-15PBlack
Update and Revision: Revision Number: 0.31 Revision Date: 04-16-2020
