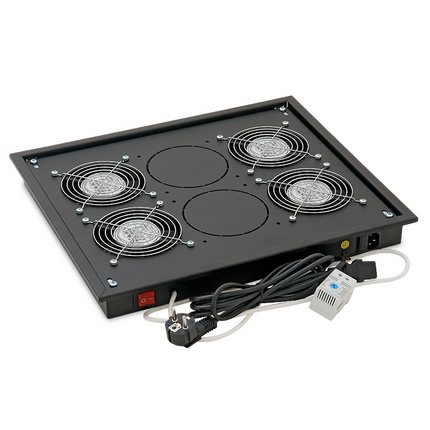

(4)Fan unit with CEE 7/7 power cord (230V) and thermostat for E-Serie Cabinets and wallmounts. With thermostat, Power Cord (German Schuko CEE 7/7).
| Suitable Applications: | Ventilating hot air from the cabinets via the top or door, or Blowing Cold air from the bottom into the cabinets. |
| Environmental Space: | Indoor |
| Input Voltage: | 230 V |
| Input frequency: | 50 - 60 Hz |
| EU CE Mark: | Yes |
| EU Directive 2011/65/EU (RoHS 2): | Compliant |
| MII Order #39 (China RoHS): | EUP 50 |
| Included Parts: | power cord (CEE 7/7 plug) |
| Packaging: | Individually packed in a box. |
| Item # | Fans # | Noise Level | Color | Air flow | Application |
|---|---|---|---|---|---|
| EDAF1021 | 2 | 57.8 dB | Gray | 109 m^3/h | E-Series Cabinets (except ESN 600mm deep and END 800x600) |
| EDAF1022 | 2 | 57.8 dB | Black | 109 m^3/h | E-Series Cabinets (except ESN 600mm deep and END 800x600) |
| EDAF1041 | 4 | 59.9 dB | Gray | 139 m^3/h | E-Series Cabinets (except ESN 600mm deep and END 800x600) |
| EDAF1042 | 4 | 59.9 dB | Black | 139 m^3/h | E-Series Cabinets (except ESN 600mm deep and END 800x600) |
| EDAF1061 | 6 | 61.4 dB | Gray | 160 m^3/h | E-Series Cabinets (except ESN 600mm deep and END 800x600) |
| EDAF1062 | 6 | 61.4 dB | Black | 160 m^3/h | E-Series Cabinets (except ESN 600mm deep and END 800x600) |
| EDAF6011 | 1 | 55.1 dB | Gray | 82 m^3/h | Wall-Mount E-Series, ESN 600mm deep and END 800x600 |
| EDAF6012 | 1 | 55.1 dB | Black | 82 m^3/h | Wall-Mount E-Series, ESN 600mm deep and END 800x600 |
| EDAF6021 | 2 | 57.8 dB | Gray | 109 m^3/h | Wall-Mount E-Series, ESN 600mm deep and END 800x600 |
| EDAF6022 | 2 | 57.8 dB | Black | 109 m^3/h | Wall-Mount E-Series, ESN 600mm deep and END 800x600 |
| EDAF6031 | 3 | 59 dB | Gray | 139 m^3/h | Wall-Mount E-Series, ESN 600mm deep and END 800x600 |
| EDAF6032 | 3 | 59 dB | Black | 139 m^3/h | Wall-Mount E-Series, ESN 600mm deep and END 800x600 |
| Update and Revision: | Revision Number: 0.188 Revision Date: 02-26-2026 |
