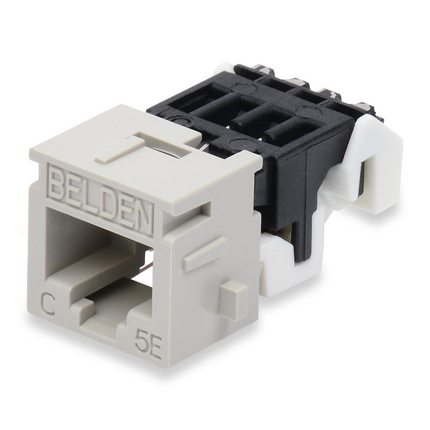

(4)EZ-MDVO Jacks are available in several colors and wiring schemes.
| Suitable Applications: | IBDN System 1200, TIA Category 5e, ISO Class D, 1000BASE-T |
| Overall Height: | 0.71 in |
| Overall Width: | 0.75 in |
| Depth: | 1.25 in |
| Wiring Scheme: | T568A/B |
| Packaging: | Individually packaged in a plastic bag. Standard pack of 50 units. |
| Weight: | 0.013 lbs |
| Description | Material | Type |
|---|---|---|
| Front Connection | Copper Alloy with 50 µ inch Gold over Nickel | Lead Frame |
| Rear Connection | Copper Alloy with Nickel Plating | IDC |
| Connector Body | Plastic - UL940V-0 |
| Dielectric Strength: | 1,000 V RMS @ 60 Hz for 1 minute |
| Current Rating: | 1.500 A |
| Insulation Resistance: | 500 M-Ohm Minimum |
| Max Contact Resistance: | 20 mOhm |
| Termination Resistance: | 2.5 mOhm |
| Installation Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -40°C To +70°C |
| Operating Temperature Range: | -10°C To +60°C |
| Connector System Compatibility: | MDVO |
| Plug /Jack Compatibility: | RJ45, RJ11 |
| Termination Front Connection: | Mated Connection |
| Termination Front Connection Durability: | 1,000 cycles |
| Termination Rear Connection: | Gas Tight IDC Connection |
| Termination Rear Connection Durability: | 20 terminations |
| Connector/Hardware Retention: | 20 lbs |
| Plug/Connector Retention: | 11.250 lbs |
| Durabilities |
|---|
| 1,000 cycles |
| Width | Height | Depth |
|---|---|---|
| 0.75 | 0.71 | 1.25 |
| Data Category: | Category 5e |
| TIA/EIA Compliance: | Category 5e - TIA 568.C.2, Category 5 - ISO/IEC 11801:2002 Ed.2 |
| Other Standards: | FCC Part 68, Subpart F, IEC 60603-7 |
| Environmental Space: | Indoor |
| EU Directive 2002/95/EC (RoHS): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Suitability - Indoor: | Yes |
| Safety Listing: | ACA, c(UL)us Listed |
| Related Parts: | Compatible with Interface and MDVO Style Faceplates, Adapters, Boxes and Patch Panels |
| Item # | Color | Packaging |
|---|---|---|
| AX100172 | Almond | Single Pack |
| AX100578 | Almond | Single Pack |
| AX100589 | Almond | Single Pack |
| AX100646 | Almond | Single Pack |
| AX100174 | Black | Single Pack |
| AX100580 | Black | Single Pack |
| AX100591 | Black | Single Pack |
| AX100648 | Black | Single Pack |
| AX100171 | Gray | Single Pack |
| AX100577 | Gray | Single Pack |
| AX100588 | Gray | Single Pack |
| AX100645 | Gray | Single Pack |
| AX100179 | TIA Blue | Single Pack |
| AX100585 | TIA Blue | Single Pack |
| AX100596 | TIA Blue | Single Pack |
| AX100653 | TIA Blue | Single Pack |
| AX100181 | TIA Brown | Single Pack |
| AX100587 | TIA Brown | Single Pack |
| AX100598 | TIA Brown | Single Pack |
| AX100655 | TIA Brown | Single Pack |
| AX100178 | TIA Green | Single Pack |
| AX100584 | TIA Green | Single Pack |
| AX100595 | TIA Green | Single Pack |
| AX100652 | TIA Green | Single Pack |
| AX100175 | TIA Orange | Single Pack |
| AX100581 | TIA Orange | Single Pack |
| AX100592 | TIA Orange | Single Pack |
| AX100649 | TIA Orange | Single Pack |
| AX100180 | TIA Purple | Single Pack |
| AX100586 | TIA Purple | Single Pack |
| AX100597 | TIA Purple | Single Pack |
| AX100654 | TIA Purple | Single Pack |
| AX100176 | TIA Red | Single Pack |
| AX100582 | TIA Red | Single Pack |
| AX100593 | TIA Red | Single Pack |
| AX100650 | TIA Red | Single Pack |
| AX100177 | TIA Yellow | Single Pack |
| AX100583 | TIA Yellow | Single Pack |
| AX100594 | TIA Yellow | Single Pack |
| AX100651 | TIA Yellow | Single Pack |
| AX100173 | White | Single Pack |
| AX100579 | White | Single Pack |
| AX100590 | White | Single Pack |
| AX100647 | White | Single Pack |
| Included Parts: | Center Stuffercap Coded A/B |
| Notes: | Please See Installation Guide PX102753 |
| Update and Revision: | Revision Number: 0.243 Revision Date: 05-10-2023 |
