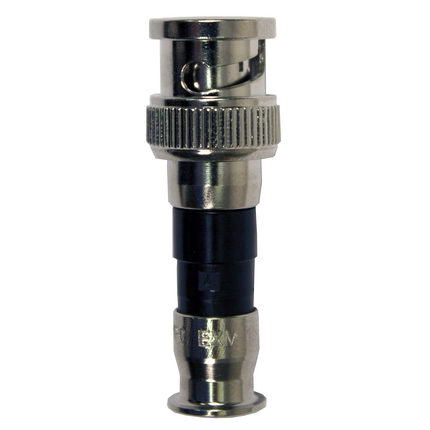

(4)EX SERIES MINI BNC COAX HEADEND UNIVERSAL COMPRESSION CONNECTOR, Fits 60% through Quad Shield Coax, Connectors sold as Packages of 1
| Suitable Applications: | Drop, Mini, Headend, Central Office, CCTV, Security Cameras, Video |
| Nominal Characteristic Impedance |
|---|
| 75 Ohm |
| Operating Temperature Range: | -40C to 60C |
| RG Type: | 59 |
| Environmental Space: | Indoor |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment): | Yes |
| Suitability - Indoor: | Yes |
| Suitability - Outdoor: | No |
| Patent: | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents. |
| Update and Revision: | Revision Number: 0.24 Revision Date: 10-01-2025 |
