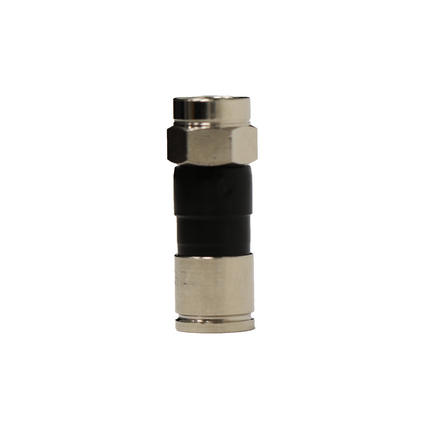

(4)EX SERIES RG6 UNVERSAL F COAX UNIVERSAL COMPRESSION CONNECTOR, Fits 60% through Quad Shield Coax, Connectors sold as Packages of 50
| Suitable Applications: | Drop, Series 6, Indoor, Premises, CATV, Video Distribution, RF Applications |
| Nominal Characteristic Impedance |
|---|
| 75 Ohm |
| Return Loss Table Notes: | Rated Frequency: 0 - 3000 MHz |
| High Frequency Table (Nominal/Typical) Notes: | Rated Frequency: 0 - 3000 MHz |
| High Frequency Table Notes: | Rated Frequency: 0 - 3000 MHz |
| Voltage Rating Table Notes: | Rated Frequency: 0 - 3000 MHz |
| RG Type: | 6 |
| Environmental Space: | Indoor |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment): | Yes |
| Suitability - Indoor: | Yes |
| Suitability - Outdoor: | No |
| Patent: | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents. |
| Notes: | Rated Frequency: 0 - 3000 MHz |
| Update and Revision: | Revision Number: 0.187 Revision Date: 10-01-2025 |
