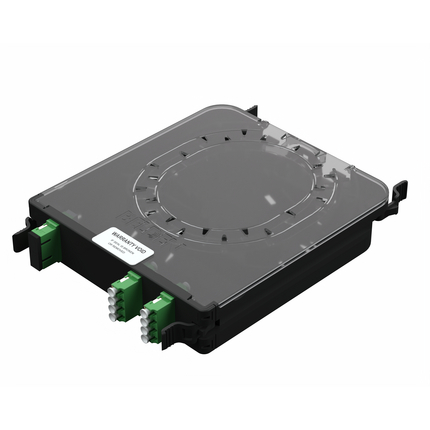

ECX Splitter Cassette 2x8 - FX ECX Splitter Cassette, OS2, 2x8


FX ECX Splitter Cassette, OS2, 2x8, 1-4 Splitter Counts, Various Upstream and Downstream Connector Types Available

Product Overview

Environmental Space: Indoor
Suitable Applications: FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Passive Optical LAN

Construction

Fiber Cable Construction
Fiber Type
OS2
Weight: 0.272 kg
Height: 33.020 mm
Width: 161.036 mm
Length: 221.996 mm

Physical Specifications

Max Capacity: 8 Fibers (Output)

Mechanical Characteristics

Front Connection: Static
Termination Style: Front

Temperature Range

Operating Temp Range: -10°C To +60°C
Storage Temp Range: -10°C To +60°C

Product Material

Materials
DescriptionMaterialColorType
HousingPC/ABSBlack
CoverPolycarbonateClear-Light Smoke
FramePC/ABSBlackLead Frame
Adapter OutputPlastic - UL94V-0GreenLC-Quad w/ Internal Shutters
Adapter InputPlastic - UL94V-0Green

Standards

TIA/EIA Compliance: Telcordia GR-1209-CORE (splitters only), Telcordia GR-1221-CORE (splitters only)
EU RoHS Compliance Date (yyyy-mm-dd): 2013-01-01
MII Order #39 (China RoHS): EUP 50

Additional Notes

Packaging: Individually packaged in a plastic shell, Shipped in cardboard box (12/box)
Related Parts: FX ECX Housings (4U, 2U, 1U), ECX Splice Cassettes, Patch Cords

History

Variants
Item #
SCSX1208SLF
SCSX2208SLF
SCSX4208MLF
Update and Revision: Revision Number: 0.18 Revision Date: 01-31-2020
Date: 2013-01-01
