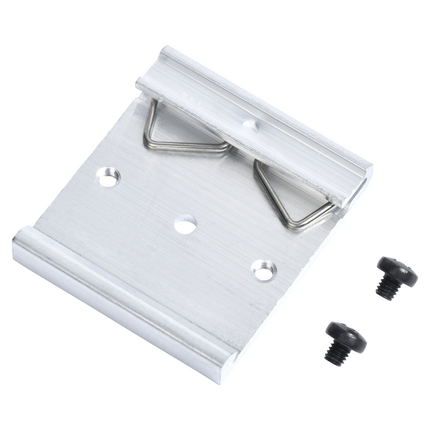

(109)DIN Rail Attachment Kit for FX ECX Single Cassette Holder, Includes 35mm DIN Rail Mounting Clip and Screws
| Suitable Applications: | Backbone, Telecommunications Rooms and Closet, Main Distribution Room, Zone Cabling, Campus, Wall-Mount Enclosures, Electronics Cabinets |
| Weight: | 0.080 lbs |
| Height: | 2.000 in |
| Length: | 1.750 in |
| Depth: | 0.340 in |
| Installation Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -40°C To +70°C |
| Description | Material | Color |
|---|---|---|
| 35mm DIN Adapter | Aluminum | Silver |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| Included Parts: | 35mm DIN Rail Clip; (2) Mounting Screws |
| Related Parts: | FX ECX Single Cassette Holder, FX Distribution Fiber Cable, FX Splice Pigtails, FX ECX Fiber Cassettes |
| Packaging: | Individually packaged in a clear plastic bag |
| Notes: | Screwdriver is required for the installation of this accessory. Refer to document PX107209EF to see installation procedures. |
| Update and Revision: | Revision Number: 0.9 Revision Date: 08-22-2022 |
