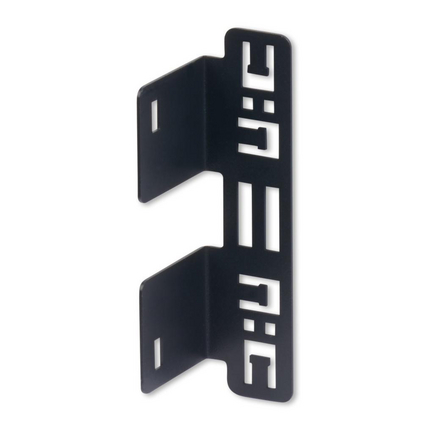

(4)ECX-BRKTMNT-3 contains 2 rack mounting brackets. This component is used to mount the FX ECX Patch Panel Housing 4U onto the rack with a 3-inch projection.
| Environmental Space: | Indoor |
| Suitable Applications: | ECX Patch Panel, cable management |
| Weight: | 1 lbs |
| Height: | 10.000 in |
| Width: | 6.850 in |
| Depth: | 1.300 in |
| Installation Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -40°C To +70°C |
| Description | Material | Color |
|---|---|---|
| External strain relief | Plastic & Steel | Black |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| UV/ Sunlight Protection: | Yes |
| Related Parts: | ECX Patch Panel 4U |
| Item # | Color | UPC |
|---|---|---|
| ECX-BRKTMNT-3 | Black | 611589224574 |
| Packaging: | Parts packaged in a bubble bag |
| Update and Revision: | Revision Number: 0.54 Revision Date: 11-14-2022 |
